Norsat International Inc.
Norsat BPF-100140 S-Band Bandpass Filter
Product Code:
BPF-100140
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.50 KGS
Width:
6.00
(cm)
Height:
3.00
(cm)
Depth:
15.00
(cm)
$0.00

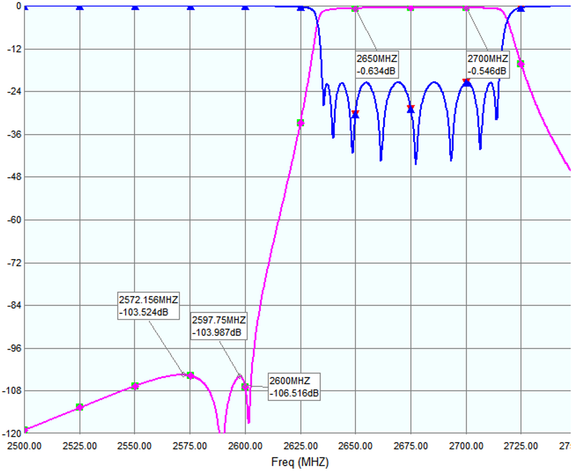

| KEY SPECIFICATIONS | |
| Band | S-Band |
| Frequency | 2650 - 2700 MHz |
| Rejection | ≥100 dB @ 2600 MHz |
| RF SPECIFICATIONS | |
| Impedance | 50 Ω |
| Input Average Power Per Port | 6W |
| Insertion Loss | 1.0 dB max. |
| VSWR | 1.5 : 1 max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Flange | SMA-Connector |
| RF Output Flange | SMA-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa - 106 KPa |
| Humidity | 5% to 95% |
| Temperature Operational | -40 to +85°C |
| Temperature Storage | -40 to +85˚C |

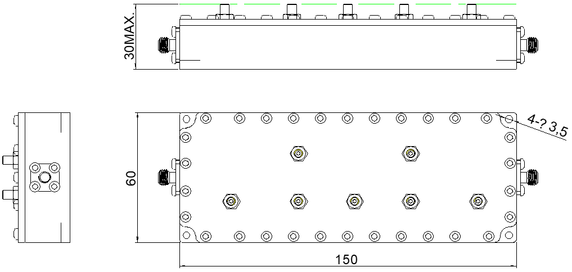

| PHYSICAL SPECIFICATIONS | |
| Product Height | 30 mm |
| Product Length | 150 mm |
| Product Weight | 0.5 kg max. |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC |
| Harmonized System Code | 8517700000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | S-Band |
| Frequency | 2650 - 2700 MHz |
| Rejection | ≥100 dB @ 2600 MHz |
| RF SPECIFICATIONS | |
| Impedance | 50 Ω |
| Input Average Power Per Port | 6W |
| Insertion Loss | 1.0 dB max. |
| VSWR | 1.5 : 1 max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Flange | SMA-Connector |
| RF Output Flange | SMA-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa - 106 KPa |
| Humidity | 5% to 95% |
| Temperature Operational | -40 to +85°C |
| Temperature Storage | -40 to +85˚C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 30 mm |
| Product Length | 150 mm |
| Product Weight | 0.5 kg max. |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC |
| Harmonized System Code | 8517700000 |
