Norsat International Inc.
Norsat BPF-100138 Ku-Band Transmit Reject Filter
Product Code:
BPF-100138
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.35 KGS
Width:
3.80
(cm)
Height:
3.80
(cm)
Depth:
7.10
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |

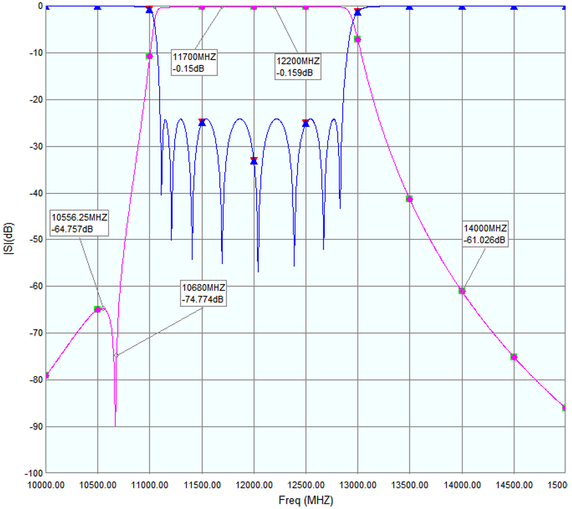

| Frequency | 11.70 - 12.20 GHz |
| Rejection | 60 dB min. at 10.55 to 10.68 GHz 55 dB min. at 14.00 to 14.50 GHz |
| RF SPECIFICATIONS | |
| Insertion Loss | 0.25 dB typ. |
| VSWR | 1.25 : 1 max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Flange | WR-75 Grooved |
| RF Output Flange | WR-75 Flat |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa - 106 KPa |
| Humidity | 5% to 95% |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +85˚C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 38 mm |
| Product Length | 71 mm |
| Product Weight | 0.35 kg |
| Product Width | 38 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517700000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Frequency | 11.70 - 12.20 GHz |
| Rejection | 60 dB min. at 10.55 to 10.68 GHz 55 dB min. at 14.00 to 14.50 GHz |
| RF SPECIFICATIONS | |
| Insertion Loss | 0.25 dB typ. |
| VSWR | 1.25 : 1 max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Flange | WR-75 Grooved |
| RF Output Flange | WR-75 Flat |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa - 106 KPa |
| Humidity | 5% to 95% |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +85˚C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 38 mm |
| Product Length | 71 mm |
| Product Weight | 0.35 kg |
| Product Width | 38 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517700000 |
