Norsat International Inc.
Norsat BPF-100132 Bandpass Filter 1243-1315MHz
Product Code:
BPF-100132
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.40 KGS
$0.00
| KEY SPECIFICATIONS | |
| 10Mhz Pass Insertion Loss | 1dB max. |
| BW @ 15Db Attenuation | 86MHz (relative to CF) |
| BW @ 30Db Attenuation | 126MHz (relative to CF) |
| DC Pass | +15 t0 +24V DC @400 mA |
| Frequency | 1243MHz - 1315MHz (BW72MHz) |
| Impedance | 50 Ohm |
| RF SPECIFICATIONS | |
| Center Frequency | 1279 MHz |
| Insertion Loss At 1243-1315Mhz | 1.0 dB max. |
| Insertion Loss At CF | 0.5 dB max. |
| VSWR | ≦1.4:1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa -106KPa |
| Humidity | 5% to 95% |
| IP Rating | IP67 |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Connectors Type | F Female (threaded not slip-on) (Input) 75 Ohm F Male (threaded not slip-on) (Output) 75 Ohm |

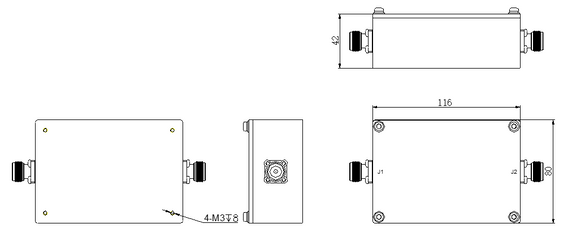

| Product Dimension | 116*80*42mm |
| Product Weight | 0.4 kg |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517700000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| 10Mhz Pass Insertion Loss | 1dB max. |
| BW @ 15Db Attenuation | 86MHz (relative to CF) |
| BW @ 30Db Attenuation | 126MHz (relative to CF) |
| DC Pass | +15 t0 +24V DC @400 mA |
| Frequency | 1243MHz - 1315MHz (BW72MHz) |
| Impedance | 50 Ohm |
| RF SPECIFICATIONS | |
| Center Frequency | 1279 MHz |
| Insertion Loss At 1243-1315Mhz | 1.0 dB max. |
| Insertion Loss At CF | 0.5 dB max. |
| VSWR | ≦1.4:1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa -106KPa |
| Humidity | 5% to 95% |
| IP Rating | IP67 |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Connectors Type | F Female (threaded not slip-on) (Input) 75 Ohm F Male (threaded not slip-on) (Output) 75 Ohm |
| Product Dimension | 116*80*42mm |
| Product Weight | 0.4 kg |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517700000 |
