Norsat International Inc.
Norsat BPF-100130 C-Band 5G Bandpass Filter BPF-100130
Product Code:
BPF-100130
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.67 KGS
Width:
9.90
(cm)
Height:
7.05
(cm)
Depth:
12.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

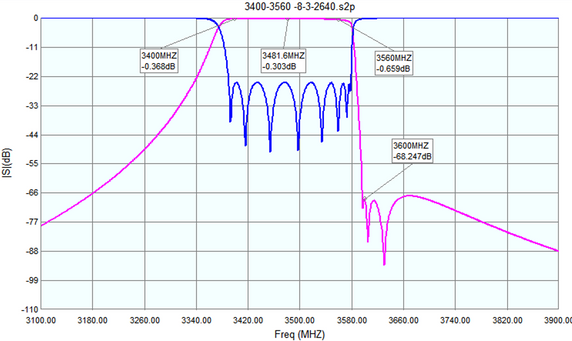

| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.40 - 3.56 GHz |
| Rejection | ≥ 60 dB min at 3.6 GHz |
| RF SPECIFICATIONS | |
| Group Delay Variation | 1 ns/MHz max. |
| Return Loss | ≥ 15 dB |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR-229G |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 5% to 95% |
| IP Rating | IP67 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70.5 mm |
| Product Length | 120 mm |
| Product Weight | 0.67 kg |
| Product Width | 99 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.40 - 3.56 GHz |
| Rejection | ≥ 60 dB min at 3.6 GHz |
| RF SPECIFICATIONS | |
| Group Delay Variation | 1 ns/MHz max. |
| Return Loss | ≥ 15 dB |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR-229G |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 5% to 95% |
| IP Rating | IP67 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70.5 mm |
| Product Length | 120 mm |
| Product Weight | 0.67 kg |
| Product Width | 99 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
