Norsat International Inc.
Norsat BPF-100095 C-Band 5G Bandpass Filter
Product Code:
BPF-100095
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.75 KGS
Width:
9.90
(cm)
Height:
7.00
(cm)
Depth:
15.90
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Norsat’s band pass filters reject terrestrial interference in C-Band and can be easily installed between the feed and an LNB. It is suitable for use with Norsat’s existing C-Band LNBs and is environmentally sealed and moisture resistant (IP66). BPF / BPF-C Series.
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.80 - 4.20 GHz |
| Number Of Onboard Los | Single-Band |

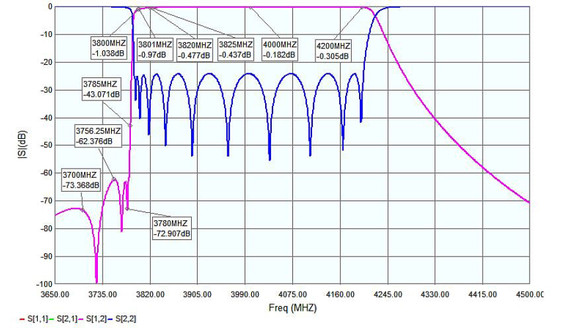

| Rejection | ≥ 0 dB min at 3.785 GHz to 3.800 GHz ≥ 30 dB min at 3.780 GHz to 3.785 GHz ≥ 60 dB min at 3.700 GHz to 3.780 GHz ≥ 70 dB min at 3.300 GHz to 3.700 GHz |
| RF SPECIFICATIONS | |
| Group Delay Variation Within ±0.5 Mhz | 3 ns max. |
| VSWR | 1.44 : 1 dB max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR-229G |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP67 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70 mm |
| Product Length | 159 mm |
| Product Weight | 0.75 kg |
| Product Width | 99 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 220 x 140 x 120 mm |
| Unit Package Height | 120 mm |
| Unit Package Length | 220 mm |
| Unit Package Weight | 1.02 kg |
| Unit Package Width | 140 mm |
5 customers are viewing this product
Details
Norsat’s band pass filters reject terrestrial interference in C-Band and can be easily installed between the feed and an LNB. It is suitable for use with Norsat’s existing C-Band LNBs and is environmentally sealed and moisture resistant (IP66). BPF / BPF-C Series.
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.80 - 4.20 GHz |
| Number Of Onboard Los | Single-Band |
| Rejection | ≥ 0 dB min at 3.785 GHz to 3.800 GHz ≥ 30 dB min at 3.780 GHz to 3.785 GHz ≥ 60 dB min at 3.700 GHz to 3.780 GHz ≥ 70 dB min at 3.300 GHz to 3.700 GHz |
| RF SPECIFICATIONS | |
| Group Delay Variation Within ±0.5 Mhz | 3 ns max. |
| VSWR | 1.44 : 1 dB max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR-229G |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP67 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70 mm |
| Product Length | 159 mm |
| Product Weight | 0.75 kg |
| Product Width | 99 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 220 x 140 x 120 mm |
| Unit Package Height | 120 mm |
| Unit Package Length | 220 mm |
| Unit Package Weight | 1.02 kg |
| Unit Package Width | 140 mm |
