Norsat International Inc.

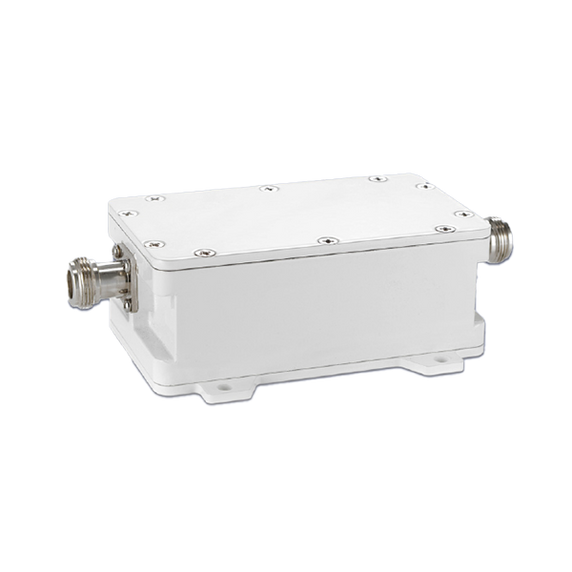

Norsat BDC-XXDNN Single-Band X-Band EXT BDC BDC Series
Product Code:
BDC-XXDNN
Condition:
New
Weight:
0.55 KGS
Width:
10.80
(cm)
Height:
4.26
(cm)
Depth:
7.95
(cm)
$3,466.67
Norsat Single-Band X-Band EXT BDC BDC Series
| KEY SPECIFICATIONS | |
| band | X-Band |
| external ref freq | 10 MHz, -5 to +5 dBm |
| LO frequency 1 | 6.3 GHz |
| LO stability | Depends on Ext. Ref |
| noise figure | 13 dB max. |
| output frequency band 1 | 950 - 1450 MHz |
| required current | 300 mA max. |
| RF SPECIFICATIONS | |
| conversion gain | 30 dB typ., 27 dB min., 33 dB max. |
| frequency range | X-Band: 7.25 - 7.75 GHz |
| gain flatness | 4 dB p-p max. |
| gain ripple (at per 36MHz) | 1 dB p-p max. |
| image rejection | 40 dBc min. |
| input VSWR | 2.2 : 1 max. |
| output P1dB | 5 dB max. |
| output VSWR | 2.2 : 1 max. |
| phase noise 100khz offset | -95 dBc/Hz |
| phase noise 10khz offset | -80 dBc/Hz |
| phase noise 1khz offset | -70 dBc/Hz |
| reference | External Reference |
| ELECTRICAL SPECIFICATIONS | |
| power connector | Feed & output connector |
| power supply | +12 to +24 VDC |
| INTERFACE SPECIFICATIONS | |
| RF input connector | N Connector |
| RF output connector | N Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| product dimensions (LxWxH) | 42.6 x 79.5 x 108.0 mm |
| product weight | 550 g |
5 customers are viewing this product
Details
Norsat Single-Band X-Band EXT BDC BDC Series
| KEY SPECIFICATIONS | |
| band | X-Band |
| external ref freq | 10 MHz, -5 to +5 dBm |
| LO frequency 1 | 6.3 GHz |
| LO stability | Depends on Ext. Ref |
| noise figure | 13 dB max. |
| output frequency band 1 | 950 - 1450 MHz |
| required current | 300 mA max. |
| RF SPECIFICATIONS | |
| conversion gain | 30 dB typ., 27 dB min., 33 dB max. |
| frequency range | X-Band: 7.25 - 7.75 GHz |
| gain flatness | 4 dB p-p max. |
| gain ripple (at per 36MHz) | 1 dB p-p max. |
| image rejection | 40 dBc min. |
| input VSWR | 2.2 : 1 max. |
| output P1dB | 5 dB max. |
| output VSWR | 2.2 : 1 max. |
| phase noise 100khz offset | -95 dBc/Hz |
| phase noise 10khz offset | -80 dBc/Hz |
| phase noise 1khz offset | -70 dBc/Hz |
| reference | External Reference |
| ELECTRICAL SPECIFICATIONS | |
| power connector | Feed & output connector |
| power supply | +12 to +24 VDC |
| INTERFACE SPECIFICATIONS | |
| RF input connector | N Connector |
| RF output connector | N Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| product dimensions (LxWxH) | 42.6 x 79.5 x 108.0 mm |
| product weight | 550 g |
