Norsat International Inc.

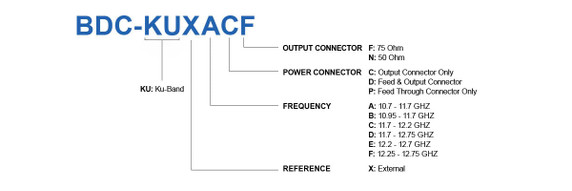

Norsat BDC-KUXBPF Single-Band Ku-Band EXT BDC Series
Product Code:
BDC-KUXBPF
Condition:
New
Weight:
0.40 KGS
Width:
8.96
(cm)
Height:
4.00
(cm)
Depth:
7.80
(cm)
$1,688.89
Norsat BDC-KUXBPS Single-Band Ku-Band EXT BDC Series
| KEY SPECIFICATIONS | |
| band | Ku-Band |
| external ref freq | 10 MHz, -5 to +5 dBm |
| LO frequency 1 | 10.0 GHz |
| LO stability | Depends on Ext. Ref |
| noise figure | 15 dB max. |
| output frequency | L-Band: 950 - 1700 MHz |
| required current | 300 mA max. |
| RF SPECIFICATIONS | |
| conversion gain | 20 dB typ., 17 dB min., 23 dB max. |
| frequency range | Ku-Band: 10.95 - 11.7 GHz |
| gain flatness | 4 dB p-p max. |
| gain ripple (at per 36MHz) | 1 dB p-p max. |
| image rejection | 40 dBc min. |
| input VSWR | 2 : 1 max. |
| output P1dB | 5 dB max. |
| output VSWR | 2:1 max. |
| phase noise 100khz offset | -95 dBc/Hz |
| phase noise 10khz offset | -80 dBc/Hz |
| phase noise 1khz offset | -70 dBc/Hz |
| reference | External Reference |
| ELECTRICAL SPECIFICATIONS | |
| power connector | Feed through con. Only |
| power supply | +12 to +24 VDC |
| INTERFACE SPECIFICATIONS | |
| RF input connector | SMA Connector |
| RF output connector | F Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| temperature operational | -40 to +60°C |
| Waterproofing | IP 67 |
| Weight | 400 g |
| PHYSICAL SPECIFICATIONS | |
| dimensions (LxWxH) | 89.6 x 78.0 x 40.0 mm |
5 customers are viewing this product
Details
Norsat BDC-KUXBPS Single-Band Ku-Band EXT BDC Series
| KEY SPECIFICATIONS | |
| band | Ku-Band |
| external ref freq | 10 MHz, -5 to +5 dBm |
| LO frequency 1 | 10.0 GHz |
| LO stability | Depends on Ext. Ref |
| noise figure | 15 dB max. |
| output frequency | L-Band: 950 - 1700 MHz |
| required current | 300 mA max. |
| RF SPECIFICATIONS | |
| conversion gain | 20 dB typ., 17 dB min., 23 dB max. |
| frequency range | Ku-Band: 10.95 - 11.7 GHz |
| gain flatness | 4 dB p-p max. |
| gain ripple (at per 36MHz) | 1 dB p-p max. |
| image rejection | 40 dBc min. |
| input VSWR | 2 : 1 max. |
| output P1dB | 5 dB max. |
| output VSWR | 2:1 max. |
| phase noise 100khz offset | -95 dBc/Hz |
| phase noise 10khz offset | -80 dBc/Hz |
| phase noise 1khz offset | -70 dBc/Hz |
| reference | External Reference |
| ELECTRICAL SPECIFICATIONS | |
| power connector | Feed through con. Only |
| power supply | +12 to +24 VDC |
| INTERFACE SPECIFICATIONS | |
| RF input connector | SMA Connector |
| RF output connector | F Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| temperature operational | -40 to +60°C |
| Waterproofing | IP 67 |
| Weight | 400 g |
| PHYSICAL SPECIFICATIONS | |
| dimensions (LxWxH) | 89.6 x 78.0 x 40.0 mm |
