Norsat International Inc.
Norsat BDC-KU05HCPN Single-Band Ku-Band BDC (5 kHz max.)
Product Code:
BDC-KU05HCPN
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.40 KGS
Width:
7.80
(cm)
Height:
4.00
(cm)
Depth:
8.96
(cm)
$1,639.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 11.70 - 12.20 GHz |
| LO Frequency 1 | 10.75 GHz |
| LO Stability | 5 kHz max. |
| Noise Figure | 15 dB max. |
| Output Frequency Band 1 | 950 - 1450 MHz |
| Reference Type | Internal Reference |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 23 dB |
| Conversion Gain Min | 17 dB |
| Conversion Gain Typ | 20 dB |
| Gain Flatness | 4 dB p-p max. |
| Gain Ripple (At Per 36Mhz) | 1 dB p-p max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.0 : 1 max. |
| Output P1db | 5 dB max. |
| Output VSWR | 2.0 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 300 mA max. |
| Input Power | Feed through con. only |
| Power Requirements | +12 to +24 V DC |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | SMA Connector |
| RF Output Connector | N Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |

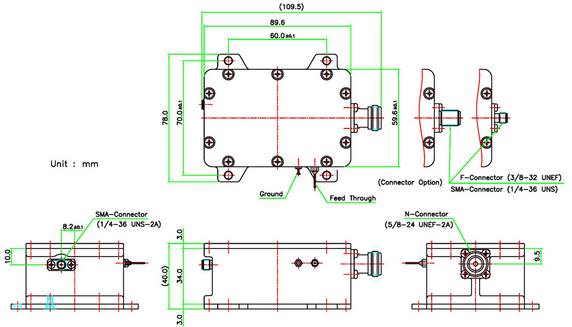

| PHYSICAL SPECIFICATIONS | |
| Product Height | 40.0 mm |
| Product Length | 89.6 mm |
| Product Weight | 0.4 kg |
| Product Width | 78 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.292 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.73 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 145 mm x 95 mm x 65 mm |
| Unit Package Height | 65 mm |
| Unit Package Length | 145 mm |
| Unit Package Weight | 0.4 kg |
| Unit Package Width | 95 mm |
| Warranty | 3 years |
