Norsat International Inc.
Norsat BDC-KAXCDS Single-Band Ka-Band EXT BDC - BDC Series
Product Code:

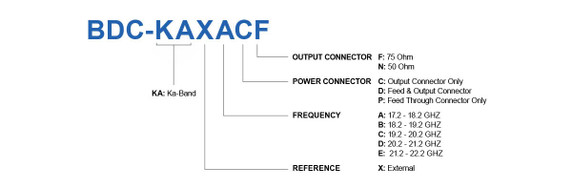

BDC-KAXCDS
Condition:
New
Weight:
0.30 KGS
Width:
14.50
(cm)
Height:
6.50
(cm)
Depth:
9.50
(cm)
$2,311.11
Norsat Single-Band Ka-Band EXT BDC - BDC Series
| KEY SPECIFICATIONS | |
| band | Ka-Band |
| external ref freq | 10 MHz, -5 to +5 dBm |
| LO frequency 1 | 16.25 GHz |
| LO stability | Depends on Ext. Ref |
| noise figure | 18 dB max. |
| output frequency band 1 | 950 - 1950 MHz |
| required current | 300 mA max. |
| RF SPECIFICATIONS | |
| conversion gain | 25 dB typ., 22 dB min., 28 dB max. |
| frequency range | Ka-Band: 19.2 - 20.2 GHz |
| gain flatness | 4 dB p-p max. |
| gain ripple (at per 36MHz) | 1 dB p-p max. |
| image rejection | 40 dBc min. |
| input VSWR | 2.2 : 1 max. |
| output P1dB | 5 dB max. |
| output VSWR | 2.2 : 1 max. |
| phase noise 100khz offset | -95 dBc/Hz |
| phase noise 10khz offset | -80 dBc/Hz |
| phase noise 1khz offset | -70 dBc/Hz |
| reference | External Reference |
| ELECTRICAL SPECIFICATIONS | |
| power connector | Feed & output connector |
| power supply | +12 to +24 VDC |
| INTERFACE SPECIFICATIONS | |
| RF input connector | SMA Connector |
| RF output connector | SMA Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |

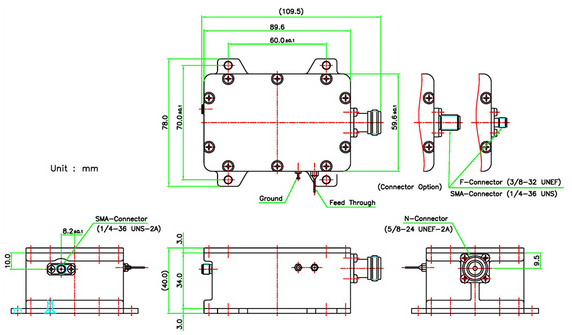

| product dimensions (LxWxH) | 89.6 x 78.0 x 40.0 mm |
| product weight | 300 g |
5 customers are viewing this product
Details
Norsat Single-Band Ka-Band EXT BDC - BDC Series
| KEY SPECIFICATIONS | |
| band | Ka-Band |
| external ref freq | 10 MHz, -5 to +5 dBm |
| LO frequency 1 | 16.25 GHz |
| LO stability | Depends on Ext. Ref |
| noise figure | 18 dB max. |
| output frequency band 1 | 950 - 1950 MHz |
| required current | 300 mA max. |
| RF SPECIFICATIONS | |
| conversion gain | 25 dB typ., 22 dB min., 28 dB max. |
| frequency range | Ka-Band: 19.2 - 20.2 GHz |
| gain flatness | 4 dB p-p max. |
| gain ripple (at per 36MHz) | 1 dB p-p max. |
| image rejection | 40 dBc min. |
| input VSWR | 2.2 : 1 max. |
| output P1dB | 5 dB max. |
| output VSWR | 2.2 : 1 max. |
| phase noise 100khz offset | -95 dBc/Hz |
| phase noise 10khz offset | -80 dBc/Hz |
| phase noise 1khz offset | -70 dBc/Hz |
| reference | External Reference |
| ELECTRICAL SPECIFICATIONS | |
| power connector | Feed & output connector |
| power supply | +12 to +24 VDC |
| INTERFACE SPECIFICATIONS | |
| RF input connector | SMA Connector |
| RF output connector | SMA Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| product dimensions (LxWxH) | 89.6 x 78.0 x 40.0 mm |
| product weight | 300 g |
