Norsat International Inc.

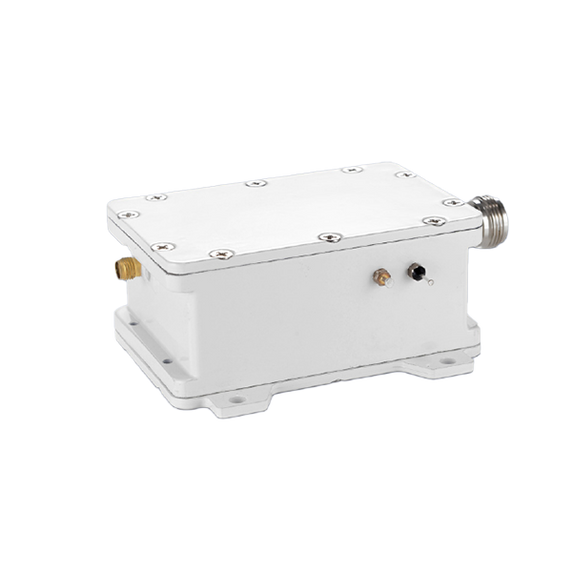

Norsat Single-Band Ka-Band BDC (25 KHz max.) - BDC Series

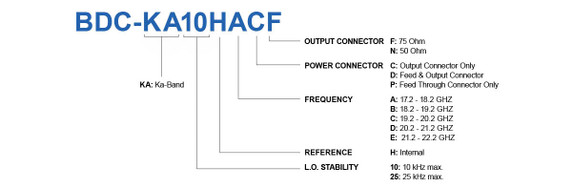

KEY SPECIFICATIONS | |
band | Ka-Band |
LO frequency 1 | 16.25 GHz |
LO stability | 25 KHz max. |
noise figure | 18 dB max. |
output frequency band 1 | 950 - 1950 MHz |
required current | 300 mA max. |
RF SPECIFICATIONS | |
conversion gain | 25 dB typ., 22 dB min., 28 dB max. |
frequency range | Ka-Band: 19.2 - 20.2 GHz |
gain flatness | 4 dB p-p max. |
gain ripple (at per 36MHz) | 1 dB p-p max. |
image rejection | 40 dBc min. |
input VSWR | 2.2 : 1 max. |
output P1dB | 5 dB max. |
output VSWR | 2.2 : 1 max. |
phase noise 100khz offset | -95 dBc/Hz |
phase noise 10khz offset | -80 dBc/Hz |
phase noise 1khz offset | -70 dBc/Hz |
reference | Internal Reference |
ELECTRICAL SPECIFICATIONS | |
power connector | Feed & output connector |
power supply | +12 to +24 VDC |
INTERFACE SPECIFICATIONS | |
RF input connector | SMA Connector |
RF output connector | SMA Connector |
ENVIRONMENTAL SPECIFICATIONS | |
IP rating | IP 67 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
product dimensions (LxWxH) | 89.6 x 78.0 x 40.0 mm |
product weight | 300 g |
