Norsat International Inc.
Norsat BDC-CXBCF Single-Band C-Band EXT BDC - BDC Series
Product Code:
BDC-CXBCF
Condition:
New
Weight:
0.62 KGS
Width:
10.80
(cm)
Height:
4.60
(cm)
Depth:
9.40
(cm)
$1,688.89
Norsat Single-Band C-Band EXT BDC - BDC Series
| KEY SPECIFICATIONS | |
| band | C-Band |
| external ref freq | 10 MHz, -5 to +5 dBm |
| LO frequency 1 | 5.95 GHz |
| LO stability | Depends on Ext. Ref |
| noise figure | 10 dB max. |
| output frequency band 1 | 1150 - 1450 MHz |
| required current | 300 mA max. |
| RF SPECIFICATIONS | |
| conversion gain | 40 dB typ., 37 dB min., 43 dB max. |
| frequency range | C-Band: 4.5 - 4.8 GHz |
| gain flatness | 4 dB p-p max. |
| gain ripple (at per 36MHz) | 1 dB p-p max. |
| image rejection | 45 dBc min. |
| input VSWR | 2.0 : 1 max. |
| output P1dB | 5 dB max. |
| output VSWR | 2.0 : 1 max. |
| phase noise 100khz offset | -95 dBc/Hz |
| phase noise 10khz offset | -83 dBc/Hz |
| phase noise 1khz offset | -73 dBc/Hz |
| reference | External Reference |
| ELECTRICAL SPECIFICATIONS | |
| power connector | Output connector only |
| power supply | +12 to +24 VDC |
| INTERFACE SPECIFICATIONS | |
| RF input connector | SMA Connector |
| RF output connector | F Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |

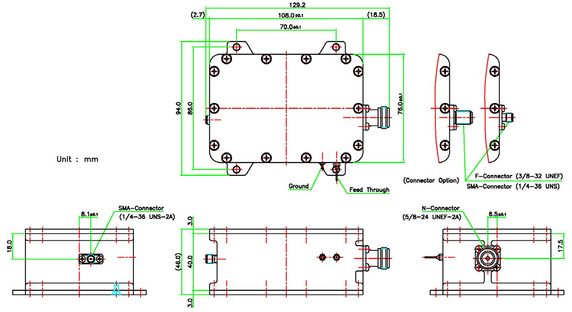

| PHYSICAL SPECIFICATIONS | |
| product dimensions (LxWxH) | 108.0 x 94.0 x 46.0 mm |
| product weight | 620 g |
5 customers are viewing this product
Details
Norsat Single-Band C-Band EXT BDC - BDC Series
| KEY SPECIFICATIONS | |
| band | C-Band |
| external ref freq | 10 MHz, -5 to +5 dBm |
| LO frequency 1 | 5.95 GHz |
| LO stability | Depends on Ext. Ref |
| noise figure | 10 dB max. |
| output frequency band 1 | 1150 - 1450 MHz |
| required current | 300 mA max. |
| RF SPECIFICATIONS | |
| conversion gain | 40 dB typ., 37 dB min., 43 dB max. |
| frequency range | C-Band: 4.5 - 4.8 GHz |
| gain flatness | 4 dB p-p max. |
| gain ripple (at per 36MHz) | 1 dB p-p max. |
| image rejection | 45 dBc min. |
| input VSWR | 2.0 : 1 max. |
| output P1dB | 5 dB max. |
| output VSWR | 2.0 : 1 max. |
| phase noise 100khz offset | -95 dBc/Hz |
| phase noise 10khz offset | -83 dBc/Hz |
| phase noise 1khz offset | -73 dBc/Hz |
| reference | External Reference |
| ELECTRICAL SPECIFICATIONS | |
| power connector | Output connector only |
| power supply | +12 to +24 VDC |
| INTERFACE SPECIFICATIONS | |
| RF input connector | SMA Connector |
| RF output connector | F Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |

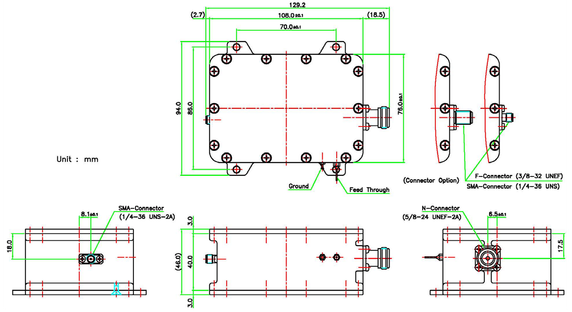

| PHYSICAL SPECIFICATIONS | |
| product dimensions (LxWxH) | 108.0 x 94.0 x 46.0 mm |
| product weight | 620 g |
