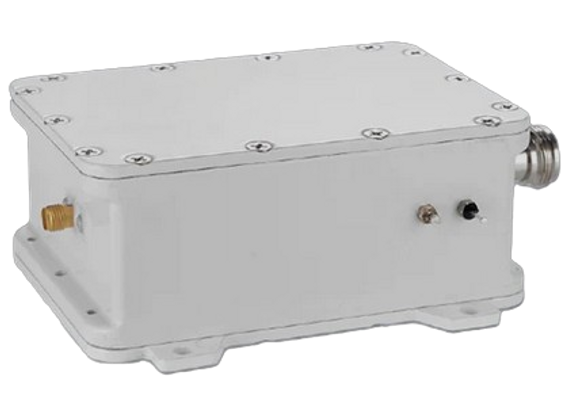

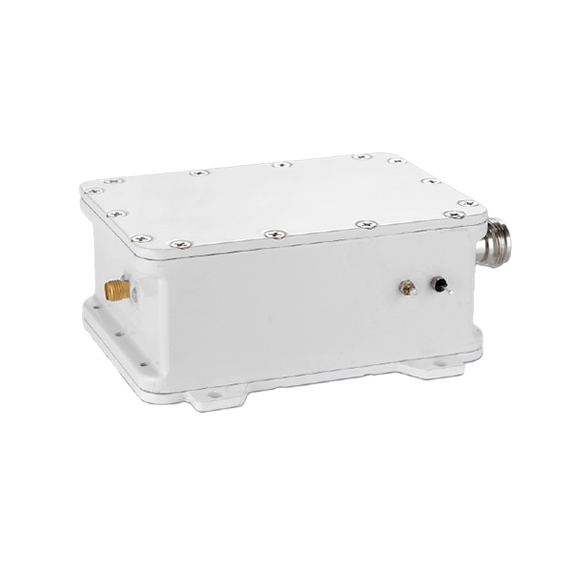

Norsat BDC-C10HADN Single-Band C-Band BDC (10 kHz max.)
Product Code:
BDC-C10HADN
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.62 KGS
Width:
9.40
(cm)
Height:
4.60
(cm)
Depth:
10.80
(cm)
$1,584.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.40 - 4.20 GHz |
| LO Frequency 1 | 5.15 GHz |
| LO Stability | 10 kHz max. |
| Noise Figure | 10 dB max. |
| Output Frequency Band 1 | 950 - 1750 MHz |
| Reference Type | Internal Reference |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 43 dB |
| Conversion Gain Min | 37 dB |
| Conversion Gain Typ | 40 dB |
| Gain Flatness | 4 dB p-p max. |
| Gain Ripple (At Per 36Mhz) | 1 dB p-p max. |
| Image Rejection | 45 dBc min. |
| Input VSWR | 2.0 : 1 max. |
| Output P1db | 5 dB max. |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 300 mA max. |
| Input Power | Feed & output connector |
| Power Requirements | +12 to +24 V DC |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | SMA Connector |
| RF Output Connector | N Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 46.0 mm |
| Product Length | 108 mm |
| Product Weight | 0.62 kg |
| Product Width | 94 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.46 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.15 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 190 mm x 115 mm x 75 mm |
| Unit Package Height | 75 mm |
| Unit Package Length | 190 mm |
| Unit Package Weight | 0.62 kg |
| Unit Package Width | 115 mm |
| Warranty | 3 years |
