Norsat ATOMSKU020S2 20W Ku-Band BUC

Name: Norsat ATOMSKU020S2 20W Ku-Band BUC
Brand: Norsat International Inc.
SKU: ATOMSKU020S2
Price: 16844.83 USD
Availability: InStock

No reviews yet

Product Code: ATOMSKU020S2

Availability: YES

Weight: 2.40 KGS

Width: 9.10 (cm)

Height: 18.10 (cm)

Depth: 16.40 (cm)

Norsat ATOMSKU020S2 20W Ku-Band BUC Data Sheet

$16,844.83

The Norsat ATOM series of solid state power amplifiers (SSPA) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.

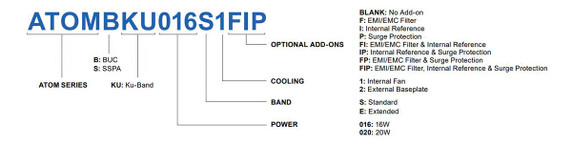

ATOM SSPA 20W, KU-BAND 14.0-14.5GHz, EXT BASEPLATE,N-CONN,WR75

KEY SPECIFICATIONS
Product Family	ATOM
Band	Ku-Band
Output Power (Rated)	20W
Input Frequency - Band 1	Ku-Band: 14.0 - 14.50 GHz
Output Frequency 1	Ku-Band: 14.0 - 14.50 GHz

RF SPECIFICATIONS
Output Power (Saturated)	43 dBm min.
Output Power( P1dB)	42 dBm min.
Phase Noise @ 1KHz offset	-72 dBc/Hz
Phase Noise @ 10KHz offset	-82 dBc/Hz
Phase Noise @ 100KHz offset	-92 dBc/Hz
Phase Noise @ 1MHz offset	-102 dBc/Hz
Gain Variation over operating band	≤ 8.0 dB p-p
Gain Variation over temperature	≤ 3.0 dB p-p
Input VSWR	2.0 : 1
Output VSWR	2.0 : 1
Spurious	In-Band: ≤ -60 dBc; Out-of-Band(@P1dB): ≤ -55 dBc

ELECTRICAL SPECIFICATIONS
Input Voltage	18V to + 56V DC
Power Consumption @Psat	210 W max.
Power Connector	MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P

INTERFACE SPECIFICATIONS
RF Input Connector	SMA- 50 Ohm
RF Output Connector	WR-75 waveguide grooved

M & C SPECIFICATIONS
M & C Interface	RS-485 & RS-232
M & C Connector	MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins. 58-533723-10P
Mute Control	Fully configurable

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational	-40 to +60°C
Temperature - Storage	-50 to +80°C
Humidity	100% condensing

PHYSICAL SPECIFICATIONS
Cooling	External Baseplate
Enclosed Accessories	Screws, Gasket, M&C Connector, Power Connector
Dimensions (L x W x H)	164 x 91 x 181 mm
Weight	< 2.4 kg
