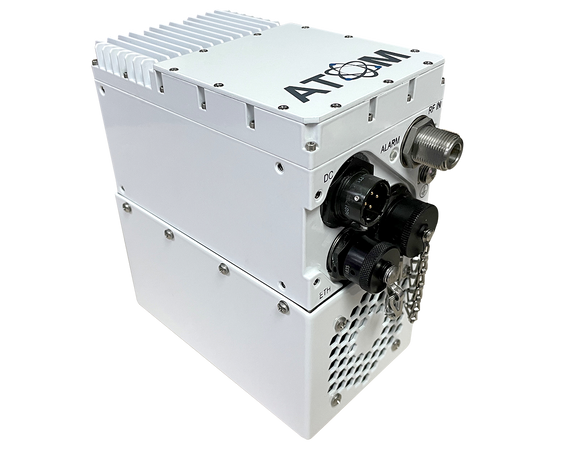

Norsat ATOMBKUG080S2 80W Ku-Band BUC

Name: Norsat ATOMBKUG080S2 80W Ku-Band BUC
Brand: Norsat International Inc.
SKU: ATOMBKUG080S2
Price: 22678.83 USD
Availability: InStock

No reviews yet

Product Code: ATOMBKUG080S2

Availability: YES

Weight: 2.30 KGS

Width: 9.40 (cm)

Height: 15.60 (cm)

Depth: 16.40 (cm)

Norsat ATOMBKUG080S2 80W Ku-Band BUC Data Sheet

$22,678.83

The Norsat ATOM series of GaN block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.

ATOM BUC 80W, Ku-Band GaN, 14.0-14.5 GHz, EXT BASEPLATE,N-CONN,WR75

KEY SPECIFICATIONS
Product Family	ATOM
Band	Ku-Band
Output Power (Rated)	80W
Input Frequency - Band 1	L-Band: 950 - 1450 MHz
Output Frequency 1	Ku-Band: 14.0 - 14.50 GHz

RF SPECIFICATIONS
Output Power (Saturated)	49 dBm min.
Noise Power Density	-65 dBm/Hz in Tx, -156 dBm/Hz in Rx
Phase Noise @ 100Hz offset	-63 dBc/Hz
Phase Noise @ 1KHz offset	-73 dBc/Hz
Phase Noise @ 10KHz offset	-83 dBc/Hz
Phase Noise @ 100KHz offset	-93 dBc/Hz
Phase Noise @ 1MHz offset	-103 dBc/Hz
Gain Variation over operating band	≤ 3 dB p-p
Gain Variation over temperature	≤ 3.0 dB p-p
Input VSWR	1.5 : 1
Output VSWR	2.5 : 1
Spurious	In-Band: ≤ -60 dBc; Out-of-Band: ≤ -60 dBc

ELECTRICAL SPECIFICATIONS
Input Voltage	18V to + 56V DC
Power Consumption @Psat	370 W max.
Power Connector	MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P

INTERFACE SPECIFICATIONS
RF Input Connector	N- 50 Ohm
RF Output Connector	WR-75 waveguide grooved

M & C SPECIFICATIONS
M & C Interface	RS-232 & RS-485 & Ethernet
M & C Connector	MIL-26482 Series 1 receptacle, Shell size 12, 10 Pins(RS-485 & RS-232); MIL-26482 Series 1 receptacle, Shell Size 10, 6 Pins(Ethernet)
Mute Control	Fully configurable

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational	-40 to +60°C
Temperature - Storage	-50 to +80°C
Humidity	100% condensing

PHYSICAL SPECIFICATIONS
Cooling	External Baseplate
Enclosed Accessories	Screws, Gasket, M&C Connector, Power Connector

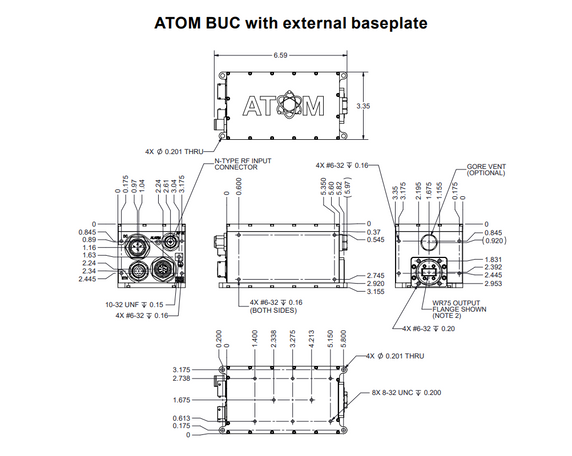

Dimensions (L x W x H)	164 x 94 x 156 mm
Weight	2.30 kg
