Norsat International Inc.

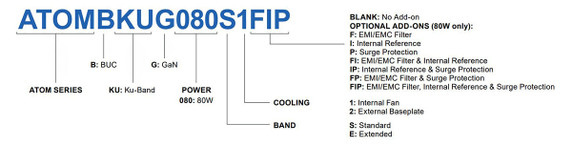

Norsat ATOMBKUG080S1IP ATOM 80W Ku-Band GaN BUC
Product Code:
ATOMBKUG080S1IP
Condition:
New
Availability:
YES
Weight:
2.80 KGS
Width:
16.00
(cm)
Height:
9.50
(cm)
Depth:
16.60
(cm)
$24,706.83
| KEY SPECIFICATIONS | |
|---|---|
| Band | Ku-Band |
| Input Frequency Band 1 | L-Band: 950 - 1450 MHz |
| Output Frequency 1 | Ku-Band: 14.0 - 14.50 GHz |
| Output Power Rated | 80W |
| RF SPECIFICATIONS | |
|---|---|
| Input VSWR | 1.5 : 1 |
| Noise Power Density | -65 dBm/Hz in Tx, -156 dBm/Hz in Rx |
| Output Power Saturated | 49 dBm min. |
| Output VSWR | 2.5 : 1 |
| Spurious | In-Band: ≤ -60 dBc; Out-of-Band: ≤ -60 dBc |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Input Voltage | 18V to + 56V DC |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Humidity | 100% condensing |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -50 to +80°C |
| Weight | 2.8kg |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Cooling | Internal Fan |
| Dimensions (LxWxH) | 164 x 94 x 156 mm |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
|---|---|
| Band | Ku-Band |
| Input Frequency Band 1 | L-Band: 950 - 1450 MHz |
| Output Frequency 1 | Ku-Band: 14.0 - 14.50 GHz |
| Output Power Rated | 80W |
| RF SPECIFICATIONS | |
|---|---|
| Input VSWR | 1.5 : 1 |
| Noise Power Density | -65 dBm/Hz in Tx, -156 dBm/Hz in Rx |
| Output Power Saturated | 49 dBm min. |
| Output VSWR | 2.5 : 1 |
| Spurious | In-Band: ≤ -60 dBc; Out-of-Band: ≤ -60 dBc |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Input Voltage | 18V to + 56V DC |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Humidity | 100% condensing |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -50 to +80°C |
| Weight | 2.8kg |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Cooling | Internal Fan |
| Dimensions (LxWxH) | 164 x 94 x 156 mm |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
