Norsat International Inc.

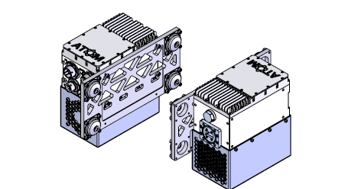

Norsat ATOMBKUG080E1FP-VA-H ATOM 80W Ku-Band BUC Vibration Assembly Right Side Mount
Product Code:
ATOMBKUG080E1FP-VA-H
Condition:
New
Availability:
10 - 12 Weeks
Weight:
3.10 KGS
$0.00
The Norsat ATOM series of GaN block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Band Type | E: Extended |
| Firmware Version | 2.3.1 |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Frequency Band 1 | 13.75 - 14.50 GHz |
| Output Power Rated | 80 W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 6.0 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain | 60 dB min., 70 db max. |
| Linear Power Plin | 46 dBm min. |
| Noise Power Density | -90 dBm/Hz in Tx, -144 dBm/Hz in Rx |
| Output Power Psat | 49 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band P1db | ≤ -60 dBc |
| Output VSWR | 2.6 : 1 max. |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 100Khz Offset Max | -93 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -103 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
| Power Consumption Psat | 370 W max. |
| Power Requirements | +18 to +56V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Output Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| M And C Interface | RS-485 & RS-232; Ethernet |
| Mute Control | Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% condensing |
| Temperature Operational | -40 to +60°C (Psat), -40 to 71°C (Plin) |
| Temperature Storage | -50 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling | 1: Internal Fan |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Fan Size | 60 mmx 60mm x 38mm |
| Product Dimensions (With Fan) (Lxwxh) | 227.1 mm x 108.9 mm x 165.4 mm |
| Product Weight | 3.1 kg |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 3 years |
5 customers are viewing this product
Details
The Norsat ATOM series of GaN block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Band Type | E: Extended |
| Firmware Version | 2.3.1 |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Frequency Band 1 | 13.75 - 14.50 GHz |
| Output Power Rated | 80 W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 6.0 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain | 60 dB min., 70 db max. |
| Linear Power Plin | 46 dBm min. |
| Noise Power Density | -90 dBm/Hz in Tx, -144 dBm/Hz in Rx |
| Output Power Psat | 49 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band P1db | ≤ -60 dBc |
| Output VSWR | 2.6 : 1 max. |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 100Khz Offset Max | -93 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -103 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
| Power Consumption Psat | 370 W max. |
| Power Requirements | +18 to +56V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Output Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| M And C Interface | RS-485 & RS-232; Ethernet |
| Mute Control | Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% condensing |
| Temperature Operational | -40 to +60°C (Psat), -40 to 71°C (Plin) |
| Temperature Storage | -50 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling | 1: Internal Fan |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Fan Size | 60 mmx 60mm x 38mm |
| Product Dimensions (With Fan) (Lxwxh) | 227.1 mm x 108.9 mm x 165.4 mm |
| Product Weight | 3.1 kg |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 3 years |
