Norsat International Inc.
Norsat ATOMBKUG080E1F ATOM 80W Ku-Band GaN BUC
Product Code:
ATOMBKUG080E1F
Condition:
New
Availability:
10 - 12 Weeks
Weight:
2.80 KGS
Width:
8.50
(cm)
Height:
8.00
(cm)
Depth:
16.80
(cm)
$23,386.83
The Norsat ATOM series of GaN block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Band Type | E: Extended |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Frequency Band 1 | 13.75 - 14.50 GHz |
| Output Power Rated | 80W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 6.0 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain | 60 dB min., 70 db max. |
| Linear Power Plin | 46 dBm min. |
| Noise Power Density | -90 dBm/Hz in Tx, -144 dBm/Hz in Rx |
| Output Power Psat | 49 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -60 dBc |
| Output VSWR | 2.6 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -63 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -103 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
| Power Consumption Psat | 370 W max. |
| Power Requirements | +18 to +56V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Output Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| M And C Interface | RS-485 & RS-232; Ethernet |
| Mute Control | Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% condensing |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +60°C (Psat), -40°C to 71°C (Plin) |
| Temperature Storage | -50 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling | 1: Internal Fan |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |

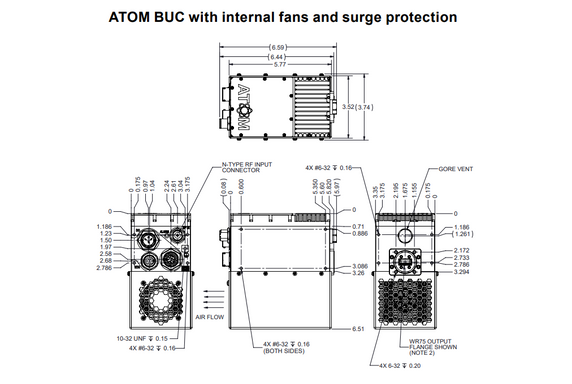

| Product Dimensions (With Fan) (Lxwxh) | 160 x 95 x 166 mm |
| Product Height | 80 mm |
| Product Length | 168 mm |
| Product Weight | < 2.8 kg |
| Product Weight Without Fan | < 2.3 kg |
| Product Width | 85 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 2.44 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 6.1 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 3 years |
5 customers are viewing this product
Details
The Norsat ATOM series of GaN block upconverters (BUC) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Band Type | E: Extended |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Frequency Band 1 | 13.75 - 14.50 GHz |
| Output Power Rated | 80W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 6.0 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain | 60 dB min., 70 db max. |
| Linear Power Plin | 46 dBm min. |
| Noise Power Density | -90 dBm/Hz in Tx, -144 dBm/Hz in Rx |
| Output Power Psat | 49 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -60 dBc |
| Output VSWR | 2.6 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -63 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -103 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
| Power Consumption Psat | 370 W max. |
| Power Requirements | +18 to +56V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Output Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| M And C Interface | RS-485 & RS-232; Ethernet |
| Mute Control | Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% condensing |
| IP Rating | IP 65 |
| Temperature Operational | -40°C to +60°C (Psat), -40°C to 71°C (Plin) |
| Temperature Storage | -50 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling | 1: Internal Fan |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Product Dimensions (With Fan) (Lxwxh) | 160 x 95 x 166 mm |
| Product Height | 80 mm |
| Product Length | 168 mm |
| Product Weight | < 2.8 kg |
| Product Weight Without Fan | < 2.3 kg |
| Product Width | 85 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 2.44 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 6.1 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 3 years |
Download
| Download Name | |
| Norsat ATOMBKUG080E1F 80W Ku-Band BUC Data Sheet | |
