Norsat International Inc.

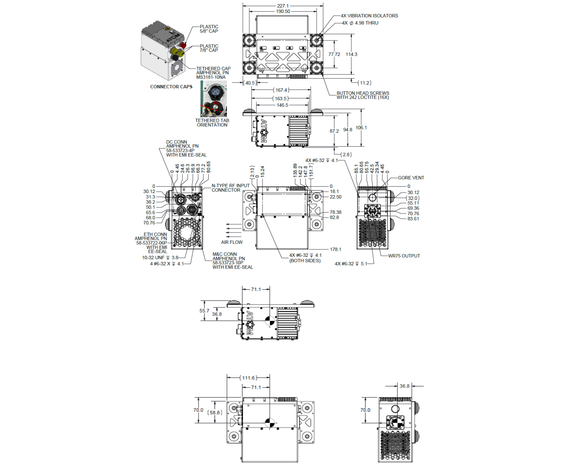

Norsat ATOMBKUG080D1FP-VA80 ATOM 80W Ku-Band GaN BUC
Product Code:
ATOMBKUG080D1FP-VA80
Condition:
New
Availability:
10 - 12 Weeks
Weight:
3.10 KGS
Width:
10.89
(cm)
Height:
17.81
(cm)
Depth:
22.71
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Compliance | MIL-STD-810 Compliant |
| Customization | Vibration Assembly |
| EMI EMC Filter And Surge Protection | MIL-STD-461, MIL-STD-1275D , MIL-STD-1275E, MIL-STD-704A |
| Firmware Version | 2.3.1 |
| Input Frequency Band 1 | 950 - 1200 MHz |
| Input Frequency Band 2 | 950 - 1700 MHz |
| LO Frequency 1 | 12.05 GHz |
| LO Frequency 2 | 12.8 |
| Output Frequency Band 1 | 13.00 - 13.25 GHz |
| Output Frequency Band 2 | 13.75 - 14.50 GHz |
| Output Power Rated | 80 W |
| Vibration Assembly | External Vibration Plate and Isolators included |
| RF SPECIFICATIONS | |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Gain Flatness (40Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 6.0 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain | 60 dB min., 70 db max. |
| Linear Power Plin | 46 dBm min. |
| Noise Power Density | -90 dBm/Hz in Tx, -144 dBm/Hz in Rx |
| Output Power Psat | 49 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -60 dBc |
| Output VSWR | 2.6 : 1 max. |
| Phase Noise 1000Khz Offset Max | -103 dBc/Hz |
| Phase Noise 100Khz Offset Max | -93 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P |
| Power Consumption Psat | 370 W max. |
| Power Requirements | +18 to +56V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| M And C Connector | RS- 485 & RS-232: MIL-26482 Series 1 receptacle Shell Size 12, 10 Pins 58-533723-10P Ethernet: MIL-26482 Series 1 receptacle Shell Size 10, 6 Pins 58-533722-06P |
| M And C Interface | RS-485 & RS-232 Ethernet |
| M&C Mute Control | Fully configurable (mute enable: high or low, mute default: enabled or disabled)
Low: 0.0 - 0.8V High: 3.0 - 5.0V |
| RF Output Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% condensing |
| Temperature Operational | -40°C to +60°C (Psat) |
| Temperature Storage | -50°C to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling | 1: Internal Fan |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Fan Height | 38 mm |
| Fan Length | 80 mm |
| Fan Width | 80 mm |
| Product Dimensions (With Fan) (Lxwxh) | 160 x 95 x 166 mm |
| Product Height | 0.1781 m |
| Product Length | 0.2271 m |
| Product Weight | 3.1 kg |
| Product Width | 0.1089 m |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 2.74 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 6.85 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
