            Norsat International Inc.

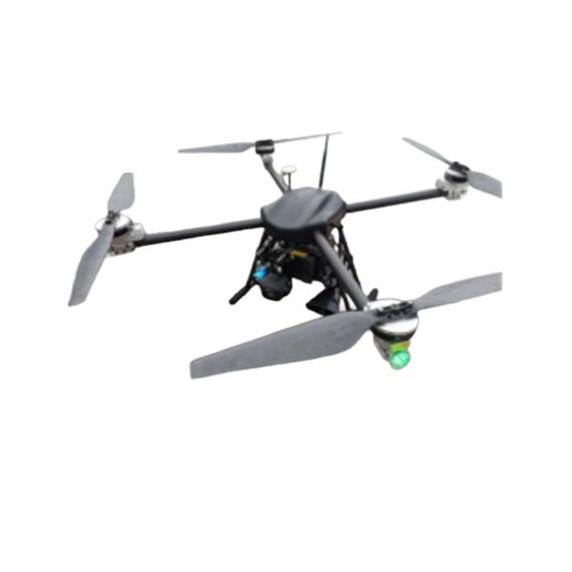

Norsat AQD133020 AQUARA 4-Rotor Drone
                            Product Code:
                            AQD133020


                            Condition:
                            New


                            Availability:
                            10 - 12 Weeks


                            Weight:
                            0.00 KGS






            $52,000.00


                | KEY SPECIFICATIONS | |
| Ascending Speed | 5 m/s max |
| Descending Speed | 2.5 m/s max |
| Flight Altitude | ≥5000 m |
| Flight Mode | Automatic, fixed point, attitude |
| Flight Time | ≥30 minutes (0 altitude environment, 15kg load) |
| Horizontal Flight Speed Attitude Mode | 20 m/s |
| Horizontal Flight Speed Positioning Mode | 5 m/s |
| Hovering Accuracy Horizontal | ± 0.5 m (GPS positioning is working normally) |
| Hovering Accuracy Vertical | ± 0.5 m (GPS positioning is working normally) |
| Operation Time | From transport state to flight state ≤5 minutes (2 persons) |
| Rotational Angular Velocity | 120° /s max |
| Standard Light Time | ≥80 minutes (no load) |
| Task Loads | Multiple interfaces can be provided to mount multiple task loads at the same time |
| Tilt Angle Attitude Mode | 30° max |
| Tilt Angle Positioning Mode | 30° max |
| Wind Speed | 6 gusts max |
| INTERFACE SPECIFICATIONS | |
| Operation Mode | app ground station / remote control |
| Satellite Positioning Module | GPS/GLONASS or BDSS/GLONASS dual-mode GPS Beidou satellite |
| ENVIRONMENTAL SPECIFICATIONS | |
| Working Humidity | < 90% |
| PHYSICAL SPECIFICATIONS | |
| Blade Specification | Diameter x Pitch: 34 x 11 inch |
| Material | Carbon fiber material, light weight, high strength, with corrosion resistance |
| Maximum Load | 20 kg |
| Product Dimensions Height | 450 mm |
| Product Dimensions Length | 1080 mm |
| Product Dimensions Width | 1080 mm |
| Unfold Product Height | 450 mm |
| Unfold Product Length | 1080 mm |
| Unfold Product Width | 1080 mm |
| Wheelbase | 1330 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | Not Applicable |
| Ex Works | Hong Kong |
