Norsat International Inc.

Norsat ACU-COM ACU for COM Maritime terminal

Name: Norsat ACU-COM ACU for COM Maritime terminal
Brand: Norsat International Inc.
SKU: ACU-COM
Availability: InStock

No reviews yet

Product Code: ACU-COM

Condition: New

Availability: 10 - 12 Weeks

Weight: 4.00 KGS

Width: 32.00 (cm)

Height: 4.40 (cm)

Depth: 48.00 (cm)

$0.00

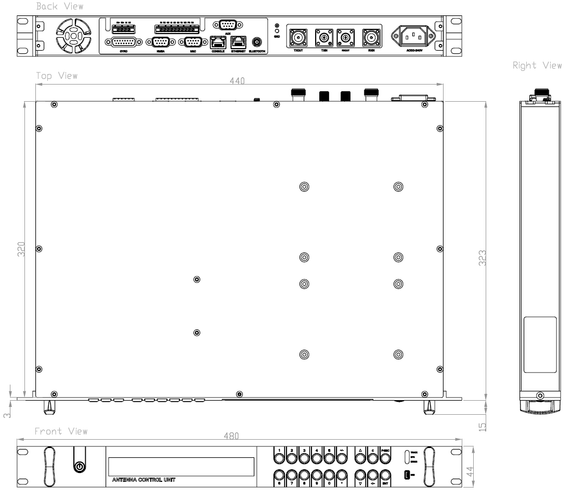

PHYSICAL SPECIFICATIONS
Back Panel	Gyro: Ship’s gyro input (15 Pins D-Sub Connector) port, can accept the GPS data and heading angle when using the GPS compass I/O & gyro strip connector (Terminal strip connector) R1, R2, COM, S1, S2, S3: Input the ship’s gyro signal (synchro, step by step type) SW1, SW2: Contact closure function for TX control TX is mute: SW1 and SW2 are open TX is not mute (Normal): SW1 and SW2 are short NMEA strip connector: NMEA type gyro input (RX+, RX-) NMEA: Output GPS data (9 Pins D-sub connector), input GPS data when connect with external GPS M&C: Monitor and control using the PC (9 Pins D-sub connector) Console: GPS data output 0V output when TX is not mute (Normal), 5V output when TX is mute Receive the external lock state & external AGC value from mode Ethernet: Monitoring and setting using the Ethernet on remote site, receive the ABS protocol (Open AMIP, ROAM, STM VACP) AUX: Send protocol to VCS for dual antenna system AC Power: Input the AC 100~240V 50/60Hz Fan
Front Panel	Power Switch LCD Button: Numerical Key, Cursor LED: Track, GPS,Eerror Mini USB Port: For M&C
Product Height	44 mm
Product Length	480 mm
Product Weight	4.0 kg
Product Width	320 mm
ADDITIONAL INFORMATION
Country Of Origin	Made in Korea
ECCN Number	5A991.G
Ex Works	Richmond, BC, Canada
Harmonized System Code	8517700000
Warranty	1 year
