Norsat ACS450KA-B Dual Speed Control System for 4.5m Ka-Band Earth Station

Name: Norsat ACS450KA-B Dual Speed Control System for 4.5m Ka-Band Earth Station
Brand: Norsat International Inc.
SKU: ACS450KA-B
Price: 37037.04 USD
Availability: InStock

No reviews yet

Product Code: ACS450KA-B

Weight: 50.00 KGS

Width: 140.00 (cm)

Height: 56.00 (cm)

Depth: 34.00 (cm)

Norsat ACS450KA-B Dual Speed Control System for 4.5m Ka-Band Earth Station Data Sheet

$37,037.04

Antenna control systems are supplied only for Motorized Earth Station Antennas. Manual Earth Stations do NOT require a control system.

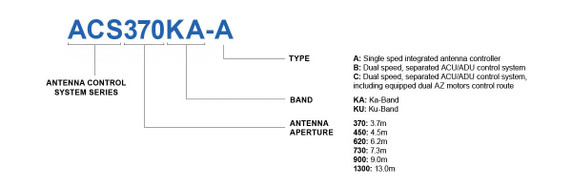

To select the correct Anchor Earth Station Antenna model for the control system, please refer to the corresponding antenna aperture, band, and drive mode.

KEY SPECIFICATIONS
band	Ka-Band
drive speed	Dual speed (High and Low)
structural form	3-axis, separate ACU/ADU
ANTENNA SPECIFICATIONS
angle display resolution	0.01°
angle display range	0 - 360°
Antenna Aperture	4.5m
encoder accuracy AZ	0.01°
encoder accuracy EL	0.01°
encoder accuracy POL	0.08°
preset satellite	ACU supports 50 satellites; ADU supports 10 satellites
tracking accuracy	1/10 reception beamwidth
type	Dual speed, separated ACU and ADU control system
ELECTRICAL SPECIFICATIONS
power consumption	3500W
power supply	ACU: AC 220V±10%, 50/60Hz; ADU: AC 380V±10%, 50/60Hz
INTERFACE SPECIFICATIONS
remote interface	RJ-45 network(optional fiber interface)
ENVIRONMENTAL SPECIFICATIONS
safety	1.Soft and hard limits provide guarantee for the safe operation of the antenna; 2.The cables are all flame retardant series cables; 3. Each rotating shaft is equipped with an independent circuit breaker, which further improves the safety of the system.
temperature operational	-20 - 60℃
temperature operational cable	-20 - 60℃; low-temperature cable: -30 - 90℃
PHYSICAL SPECIFICATIONS
product dimension	Standard Chassis 6U
product dimensions (LxWxH)	560 x 340 x 1400 mm
standard configuration	Antenna control unit, antenna drive unit, beacon tracking receiving unit, photoelectric encoder, flame retardant cable and connectors
