Norsat ACC‑101103 Kit, Ground Control Station, RuggON PX501, for CBRN UGV

Name: Norsat ACC‑101103 Kit, Ground Control Station, RuggON PX501, for CBRN UGV
Brand: Norsat International Inc.
SKU: ACC‑101103
Availability: OutOfStock

No reviews yet

Product Code: ACC‑101103

Condition: New

Availability: Available

Weight: 1.36 KGS

Width: 2.30 (cm)

Height: 19.50 (cm)

Depth: 28.00 (cm)

Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

13th generation Intel® Core™ i5 processor
Advanced display with high brightness and hyper dimming technology to adapt different ambient-light conditions
WiFi 6E & 5G, Iridium LEO satellite
Hot-swap battery plus fast charging offers near indefinite capacity
A wealth of I/O ports and expansion options fulfill field use

KEY SPECIFICATIONS
Camera	2MP front camera 8MP auto focus rear camera with LED flash
Communication	Wi-Fi 6E, 802.11 ax Bluetooth V5.3 GNSS (GPS/ GLONASS/ BeiDou)
Display	10.1” TFT LED backlight WUXGA (1920 x 1200), Gorilla Glass 1000 nits sunlight readable with hyper dimming option Capacitive multi-touch screen supports glove touch, water rejection, palm rejection, 2mm hard tip stylus
Security	TPM2.0
System	Intel® Core™ i5-1335UE Intel® Core™ i7 1365UE Intel® Processor U300E 8GB DDR5 SDRAM 128GB PCIE M.2 SSD
ELECTRICAL SPECIFICATIONS
Power	AC adapter (65W, 100-240V AC, 50/60Hz) 4500mAh hot swappable battery, (10.8V, 48.6Wh)^I Fast charging supported ^IBattery life rating is for comparison purposes only. Actual battery life varies by configuration, application, power management and operating conditions.
INTERFACE SPECIFICATIONS
Control Button	Programmable button x 3 Barcode trigger x 1 Power, volume, Windows button

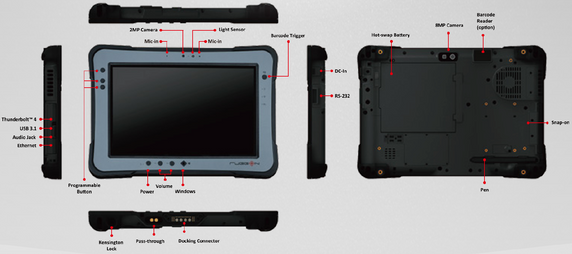

I/O Interface	USB 3.1 type A x1, Thunderbolt™ 4 Type-C x 1 RS-232 x 1, option USB 2.0 or Micro SD slot Gigabit Ethernet (RJ45) x 1 Audio headset jack (Headphone/ microphone combo) x 1 Nano SIM slot x 2 Docking connector (12-pin) x 1 DC-in x 1
M AND C SPECIFICATIONS
Software	DashON
ENVIRONMENTAL SPECIFICATIONS
Humidity	95%, non-condensing
IP Rating	IP65
Rugged Feature	MIL-STD-810H and MIL-STD-461G certified Vibration, shock and 5-foot drop resistance
Temperature Operational	-20°C to +60°C
Temperature Storage	-30°C to +70°C
PHYSICAL SPECIFICATIONS

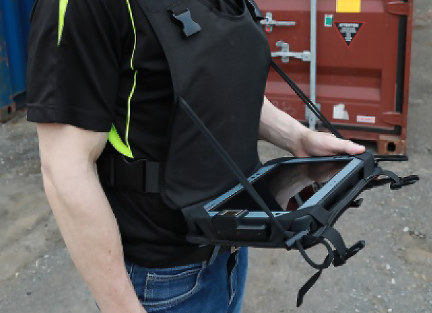

Enclosed Accessories	RuggGear loading vest and multi-use carry bag, mounting bracket, case
Product Height	195 mm
Product Length	280 mm
Product Weight	1.36 kg (depends on configuration and optional accessories)
Product Width	23 mm
ADDITIONAL INFORMATION
Aluminium Content	0 kg
Aluminium Total Value	$ 0
Country Of Origin	-
ECCN Number	-
Ex Works	Richmond, BC, Canada
Harmonized System Code	-
Unit Package Dimensions	-
Unit Package Weight	-
Warranty	1 year
