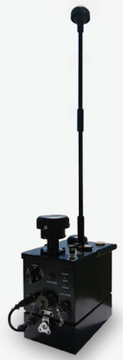

Norsat ACC‑101099 Kit, Biological Detection Sensor, IBAC2, for CBRN UGV
$0.00
New
Zoom the image with the mouse
Norsat International Inc.
Norsat ACC‑101100 Kit, Radiological Detection Sensor, SPIR‑Explorer, for CBRN UGV
Product Code:
ACC‑101100
Condition:
New
Availability:
Available
Weight:
0.00 KGS
Width:
13.20
(cm)
Height:
8.10
(cm)
Depth:
25.00
(cm)
$0.00
The SPIR-Explorer sensor is a lightweight radiation detector designed to be mounted on a UAV/Drone or UGV/Robot for a wide range of applications where radiation detection, measurement, and nuclide identification is needed. This includes environmental surveys, military reconnaissance, Radiological Dispersal or Exposure Device (RDD or RED) detection, hospitals/industry fire hazards, nuclear power plant emergency response.
FEATURES
• Real-time, instant Detection, Measurement and Identification
• Wide dose rate range: from natural background to high accident levels
• Light and robust
• Simple and fully automated use
• Light weight means smaller drone or longer flight time
• 1000 times more sensitive that most of the GM-based sensors for drones
• Extrapolation of the measurements at ground level
• Count rate per radionuclide
DESCRIPTION

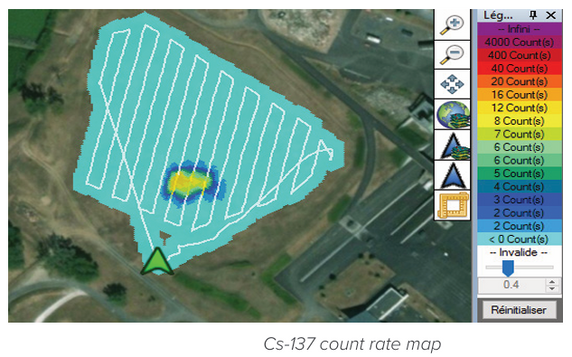

The package includes SpirMOBILE software for visualization and mapping of the dose rates (including extrapolated at ground level), nuclide identification, and count rate for each nuclide. SpirMOBILE has the capability to draw maps with interdiction/hazardous areas.
SpirMOBILE works on a remote/ground computer when the drone or robot includes a compliant radio communication system providing a robust and no-loss link. This feature
is available on several industrial drones. For other drones or robots, the SKIDER(tm) communication system may be used.
Alternatively, when real-time vizualisation is not needed, the SpirMOBILE system can be installed on an embedded computer/tablet with USB connection to the SPIR-Explorer
sensor and to a GPS.
SpirVIEW Mobile (option) displays allows efficient situational awareness thanks to its capability to do data fusion from several devices on the same map: swarm of drones,
combination with helicopter/car/pedestrian measurements (SPIR-Ident Mobile, SPIR-Pack, SPIR-Ace).
| KEY SPECIFICATIONS | |
| Acquisition Rate | 0.5 second |
| Detection Capability | Better than 0.1 µSv/h (10 µR/h) increase in 2s |
| Dose Rate Measurement Range | 0.001 µSv/h to 10 Sv/h (0.1 µR/h to 1000 R/h) |
| Energy Range | From 20 keV to 3 MeV |
| Real-Time Nuclide Identification | Better than 0.5 µSv/h (50 µR/h) |
| Sensing Technology | - NaI(Tl) dia 32 mm*51 mm or LaBr3(Eu) dia 25 mm*32 mm - + 2 GM tubes (mid and high range) |
| Spectrometry | 1024 channels |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | 4.5 - 18 VDC |
| Power Consumption | ≤ 1 W |
| INTERFACE SPECIFICATIONS | |
| Connnector | Miniature Cylindrical Connector |
| M AND C SPECIFICATIONS | |
| Data I/O | 230 kbps (RS232C link in logical level, 3.3 V) |
| Software | Software to be installed on a remote computer. Provides real time processing including ground dose rate calculation and nuclide identification, display, mapping, and data storage. Includes: • SpirMOBILE • SpirMOBILE Replay |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 93% HR at 30°C |
| IP Rating | IP65 |
| Temperature Operational | -20°C to +50°C, operates accurately under temperature shock |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | TBD |
| Mounting | 4 x M5 |
| Product Height | 81 mm |
| Product Length | 250 mm |
| Product Weight | - NaI(Tl): 840 g (excludes connector) - LaBr3(Eu): 740 g (excludes connector) |
| Product Width | 132 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | - |
| ECCN Number | - |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | - |
| Unit Package Dimensions | - |
| Unit Package Weight | - |
| Warranty | 1 year |
