Norsat International Inc.

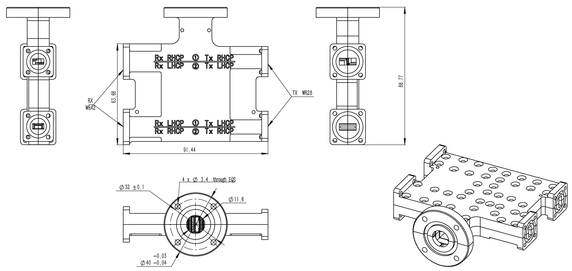

Norsat ACC-101070 Ka-Band 4-Port Diplexer with Polarizer
Product Code:
ACC-101070
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
8.68
(cm)
Height:
3.20
(cm)
Depth:
9.14
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Rx Frequency | 17.7 - 21.2 GHz |
| Tx Frequency | 27.5 - 31.0 GHz |
| ANTENNA SPECIFICATIONS | |
| Axial Ratio | Polarizer: ≤ 1 dB |
| Cross Polarization Isolation | Diplexer: ≥ 35 dB |
| Number Of Ports | Diplexer: 4-Ports |
| Phase Difference | Polarizer: 90° ± 3° |
| Polarization | Polarizer: Circular |
| RF SPECIFICATIONS | |
| Insertion Loss | Diplexer: ≤ 0.3 dB Polarizer: ≤ 0.3 dB |
| Rx-Tx Port Isolation | Diplexer: ≥ 85 dB |
| Tx-Rx Port Isolation | Diplexer: ≥ 85 dB |
| VSWR | Diplexer: ≤ 1.3 : 1 Polarizer: ≤ 1.15 : 1 |
| INTERFACE SPECIFICATIONS | |
| Common Port | Diplexer: φ 11.6 |
| Rx Interface | Diplexer: WR-42 |
| Tx Interface | Diplexer: WR-28 |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | Diplexer: IP67 |
| PHYSICAL SPECIFICATIONS | |
| Product Height | Diplexer: 20 mm Polarizer: 20 mm |
| Product Length | Diplexer: 91 mm Polarizer: 42 mm |
| Product Weight | Diplexer: 230 g Polarizer: 70 g |
| Product Width | Diplexer: 87 mm Polarizer: 20 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517700000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Rx Frequency | 17.7 - 21.2 GHz |
| Tx Frequency | 27.5 - 31.0 GHz |
| ANTENNA SPECIFICATIONS | |
| Axial Ratio | Polarizer: ≤ 1 dB |
| Cross Polarization Isolation | Diplexer: ≥ 35 dB |
| Number Of Ports | Diplexer: 4-Ports |
| Phase Difference | Polarizer: 90° ± 3° |
| Polarization | Polarizer: Circular |
| RF SPECIFICATIONS | |
| Insertion Loss | Diplexer: ≤ 0.3 dB Polarizer: ≤ 0.3 dB |
| Rx-Tx Port Isolation | Diplexer: ≥ 85 dB |
| Tx-Rx Port Isolation | Diplexer: ≥ 85 dB |
| VSWR | Diplexer: ≤ 1.3 : 1 Polarizer: ≤ 1.15 : 1 |
| INTERFACE SPECIFICATIONS | |
| Common Port | Diplexer: φ 11.6 |
| Rx Interface | Diplexer: WR-42 |
| Tx Interface | Diplexer: WR-28 |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | Diplexer: IP67 |
| PHYSICAL SPECIFICATIONS | |
| Product Height | Diplexer: 20 mm Polarizer: 20 mm |
| Product Length | Diplexer: 91 mm Polarizer: 42 mm |
| Product Weight | Diplexer: 230 g Polarizer: 70 g |
| Product Width | Diplexer: 87 mm Polarizer: 20 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517700000 |
| Warranty | 1 year |
