Norsat International Inc.
Norsat ACC-101069 Ethernet SFP Transceiver, GbE, uOTDR, 1310 nm DFB, SC/UPC
Product Code:
ACC-101069
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
1.43
(cm)
Height:
1.24
(cm)
Depth:
6.21
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

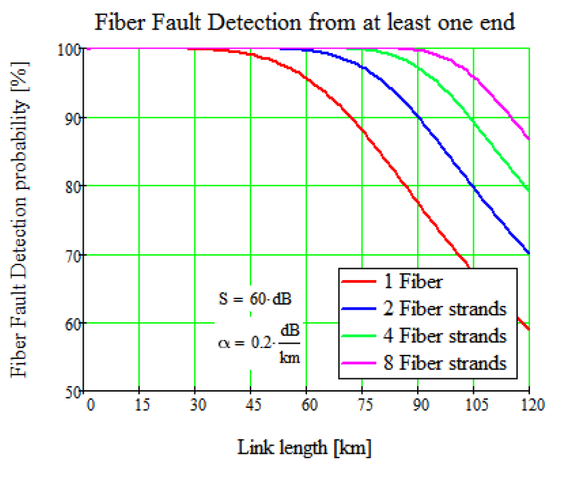

| RF SPECIFICATIONS | |
| Accuracy | ±50m max. |
| Dead Zone | 30m typ., 50m max. |
| Dynamic Range | 55 dB min., 60 dB typ. |
| Laser High | +85°C, ΔλC (nm): λC + 6.0, Δλ (nm): + 6.0, (Δλ = 0.1 nm per °C) |
| Laser Low | -40°C, ΔλC (nm): λC - 6.5, Δλ (nm): - 6.5, (Δλ = 0.1 nm per °C) |
| Laser Room | +25°C, ΔλC (nm): λC, (Δλ = 0.1 nm per °C) |
| Link Minimum Datasheet Optical Power Budget | 23 dB |
| Link Minimum Planning Optical Power Budget | 20 dB |
| Link Parameter At Specific Bit Rate | 125 - 156 Mbps |
| Resolution | 10m max. |
| Rx Average Maximum Input Power | 1 dBm min. |
| Rx Average Optical Input Power | -25 dBm max. |
| Rx CML Data Output Level HIGH | VCCRX-0.020V min., VCCRX-0.005V typ., VCCRX max. |
| Rx CML Data Output Level LOW | VCCRX-0.475V min., VCCRX-0.400V typ., VCCRX-0.350V max. |
| Rx Ethernet Sensitivity/Overload | Referenced to BER < 10E-12 with 2^7-1 PRBS and with PSU decoupling and bypass per MSA at optimum testing environment.) |
| Rx Loss Of Signal Asserted | -25 dBm typ. |
| Rx Loss Of Signal De-Asserted | -24 dBm typ. |
| Rx Loss Of Signal Hysteresis | 1 dB min. |
| Rx Operating Wavelength | 1260 nm - 1635 nm |
| Rx Output Eye Conformance | IEEE 802.3-2008 |
| Rx Power Supply Current | 110 mA max. |
| Rx Power Supply Voltage | 3.15V min., 3.3V typ., 3.45V max. |
| Rx Total Jitter | 0.35 UI max. |
| Tx Alarm Voltage (Alarm Condition) | VCCTX |
| Tx Alarm Voltage (No Alarm Condition) | 0V to 0.8V |
| Tx Average Optical Output Power | -2 dBm min., 0 dBm typ., 1 dBm max. |
| Tx Disable Voltage | 0V to 0.8V |
| Tx Enable Timing | 0.1 ms max. |
| Tx Enable Voltage | VCCTX |
| Tx Operating Wavelength | CC nm typ. |
| Tx Optical Extinction Ratio | 9 dB min. |
| Tx Optical Power When Disabled | -30 dBm max. |
| Tx Output Eye Conformance | IEEE 802.3-2008 SONET OC-3 SDH STM-1 |
| Tx Power Supply Current | 140 mA max. |
| Tx Power Supply Voltage | 3.15V min., 3.3V typ., 3.45V max., |
| Tx Spectral Width | 0.1 nm max. |
| Tx Total Jitter | 0.3 UI max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply Voltage | 3.6 V max. |
| ENVIRONMENTAL SPECIFICATIONS | |
| Relative Humdity | 5% to 95% |
| Temperature Operational | -40 to +85˚C (case) |
| Temperature Storage | -20 to +70˚C (case) |

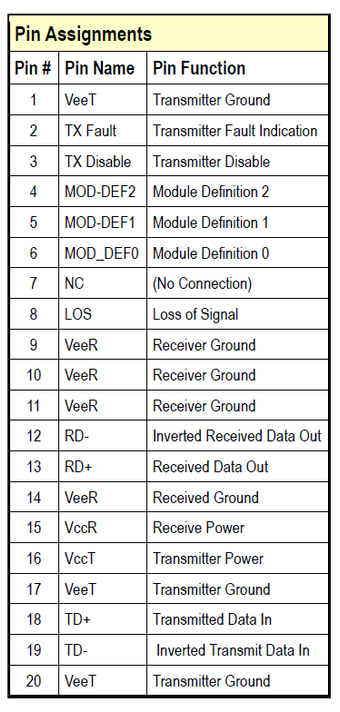

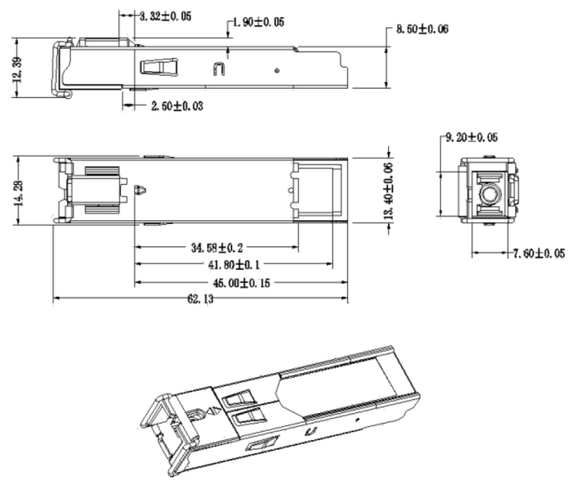

| PHYSICAL SPECIFICATIONS | |
| Product Height | 12.39 mm |
| Product Length | 62.13 mm |
| Product Width | 14.28 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
5 customers are viewing this product
Details
| RF SPECIFICATIONS | |
| Accuracy | ±50m max. |
| Dead Zone | 30m typ., 50m max. |
| Dynamic Range | 55 dB min., 60 dB typ. |
| Laser High | +85°C, ΔλC (nm): λC + 6.0, Δλ (nm): + 6.0, (Δλ = 0.1 nm per °C) |
| Laser Low | -40°C, ΔλC (nm): λC - 6.5, Δλ (nm): - 6.5, (Δλ = 0.1 nm per °C) |
| Laser Room | +25°C, ΔλC (nm): λC, (Δλ = 0.1 nm per °C) |
| Link Minimum Datasheet Optical Power Budget | 23 dB |
| Link Minimum Planning Optical Power Budget | 20 dB |
| Link Parameter At Specific Bit Rate | 125 - 156 Mbps |
| Resolution | 10m max. |
| Rx Average Maximum Input Power | 1 dBm min. |
| Rx Average Optical Input Power | -25 dBm max. |
| Rx CML Data Output Level HIGH | VCCRX-0.020V min., VCCRX-0.005V typ., VCCRX max. |
| Rx CML Data Output Level LOW | VCCRX-0.475V min., VCCRX-0.400V typ., VCCRX-0.350V max. |
| Rx Ethernet Sensitivity/Overload | Referenced to BER < 10E-12 with 2^7-1 PRBS and with PSU decoupling and bypass per MSA at optimum testing environment.) |
| Rx Loss Of Signal Asserted | -25 dBm typ. |
| Rx Loss Of Signal De-Asserted | -24 dBm typ. |
| Rx Loss Of Signal Hysteresis | 1 dB min. |
| Rx Operating Wavelength | 1260 nm - 1635 nm |
| Rx Output Eye Conformance | IEEE 802.3-2008 |
| Rx Power Supply Current | 110 mA max. |
| Rx Power Supply Voltage | 3.15V min., 3.3V typ., 3.45V max. |
| Rx Total Jitter | 0.35 UI max. |
| Tx Alarm Voltage (Alarm Condition) | VCCTX |
| Tx Alarm Voltage (No Alarm Condition) | 0V to 0.8V |
| Tx Average Optical Output Power | -2 dBm min., 0 dBm typ., 1 dBm max. |
| Tx Disable Voltage | 0V to 0.8V |
| Tx Enable Timing | 0.1 ms max. |
| Tx Enable Voltage | VCCTX |
| Tx Operating Wavelength | CC nm typ. |
| Tx Optical Extinction Ratio | 9 dB min. |
| Tx Optical Power When Disabled | -30 dBm max. |
| Tx Output Eye Conformance | IEEE 802.3-2008 SONET OC-3 SDH STM-1 |
| Tx Power Supply Current | 140 mA max. |
| Tx Power Supply Voltage | 3.15V min., 3.3V typ., 3.45V max., |
| Tx Spectral Width | 0.1 nm max. |
| Tx Total Jitter | 0.3 UI max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply Voltage | 3.6 V max. |
| ENVIRONMENTAL SPECIFICATIONS | |
| Relative Humdity | 5% to 95% |
| Temperature Operational | -40 to +85˚C (case) |
| Temperature Storage | -20 to +70˚C (case) |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 12.39 mm |
| Product Length | 62.13 mm |
| Product Width | 14.28 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
