Norsat International Inc.
Norsat ACC-101065 Fiber Transceiver, Chassis Plug-in
Product Code:
ACC-101065
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
8.00
(cm)
Height:
3.50
(cm)
Depth:
23.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Form Factor | Indoor Flange Mount |
| Frequency Band | 30 MHz to 3000 MHz |
| Function | Transceiver (Tx+Rx) |
| Number Of Lnas | 2x LNA |
| RF SPECIFICATIONS | |
| Frequency Response Flatness Max | 4.5 dB p-p |
| Frequency Response Flatness Typ | 4.0 dB p-p |
| Group Delay | 1 ns (3 GHz) |
| Input Impedance | 50Ω |
| Input Return Loss | 11 dB min., 13 dBm typ. |
| Noise Figure | At 1 GHz: 10 dB typ., 13 dB max. |

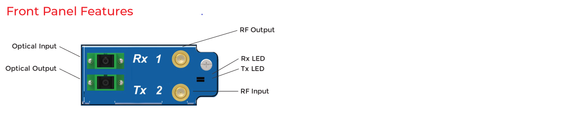

| Optical Connectors | SC/APC bulkheads |
| Optical Wavelength | 1310 ± 10 nm |
| Output Impedance | 50Ω |
| Output Return Loss | 11 dB min., 13 dBm typ. |
| Receiver Optical Input | +11 dBm max. |
| RF Gain Max | 36 dB |
| RF Gain Min | 30 dB |
| RF Gain Typ | 33 dB |
| Spurious Free Dynamic Range | At 1 GHz: 102 dB/Hz typ. |
| Third Order Intercept | At 1 GHz: -12 dBm min., -10 dBm typ. |
| Transmitter Optical Input | +8 dBm max. |
| Transmitter Output Power | 4.5 dBmo typ, 6.5 dBmo max. |
| Transmitter RF Input | -15 dBm max. |
| ELECTRICAL SPECIFICATIONS | |
| Supply Voltage | 11 VDC min., 12 VDC typ., 12.5 VDC max. |
| Transciever Current | 0.65 A typ., 0.75 A max. |
| INTERFACE SPECIFICATIONS | |
| RF Connectors | 50 Ohm SMA(f) |
| M AND C SPECIFICATIONS | |
| M And C | Through RJ45 Ethernet port |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Case Temperature | 0 to +60˚C |
| Storage Temperature | -40 to +85˚C |

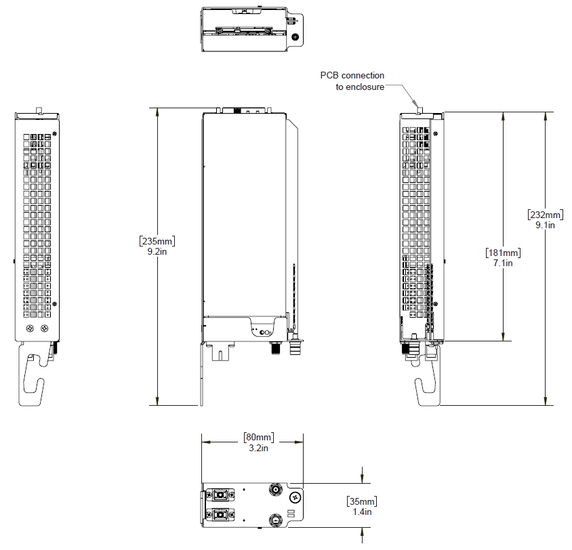

| PHYSICAL SPECIFICATIONS | |
| Product Height | 35 mm |
| Product Length | 235 mm |
| Product Weight | 260 g |
| Product Width | 80 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
