Norsat International Inc.

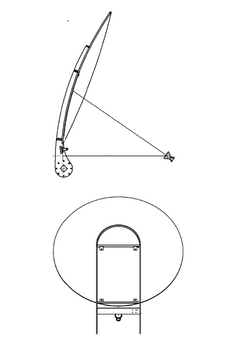

Norsat ACC-101039 30cm Ka-Band Reflector + OMT+ Feed, Prime Focus
Product Code:
ACC-101039
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$59,942.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 30cm |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Prime Focus |
| Axis Ratio | ≤ 2.0 dB |
| Feed Configuration | Center |
| Polarization | Circular (Ka) Rx: RHCP/Tx: LHCP |
| RF SPECIFICATIONS | |
| Port Isolation Rx | ≥ 85 dB |
| Port Isolation Tx | ≥ 40 dB |
| Power Capacity | 30 W |
| Rx Frequency | 17.7 - 20.20 GHz |
| Rx Gain | Rx 30.5 dBi @ 19 GHz |
| Rx Interface | WR42, RHCP |
| Tx Frequency | 27.5 - 30.0 GHz |
| Tx Gain | 32.5 dBi @ 30 GHz |
| Tx Interface | WR28, LHCP |
| Tx Rx Isolation Port Isolation | Tx ≥ 100 dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95%(20℃) |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -60 °C to +70°C |
| Windspeed Operational | 13m/s |
| Windspeed Survival | 20 m/s |
| PHYSICAL SPECIFICATIONS | |
| Reflector Material | Carbon fiber |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 30cm |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Prime Focus |
| Axis Ratio | ≤ 2.0 dB |
| Feed Configuration | Center |
| Polarization | Circular (Ka) Rx: RHCP/Tx: LHCP |
| RF SPECIFICATIONS | |
| Port Isolation Rx | ≥ 85 dB |
| Port Isolation Tx | ≥ 40 dB |
| Power Capacity | 30 W |
| Rx Frequency | 17.7 - 20.20 GHz |
| Rx Gain | Rx 30.5 dBi @ 19 GHz |
| Rx Interface | WR42, RHCP |
| Tx Frequency | 27.5 - 30.0 GHz |
| Tx Gain | 32.5 dBi @ 30 GHz |
| Tx Interface | WR28, LHCP |
| Tx Rx Isolation Port Isolation | Tx ≥ 100 dB |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 95%(20℃) |
| IP Rating | IP65 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -60 °C to +70°C |
| Windspeed Operational | 13m/s |
| Windspeed Survival | 20 m/s |
| PHYSICAL SPECIFICATIONS | |
| Reflector Material | Carbon fiber |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
