Norsat International Inc.

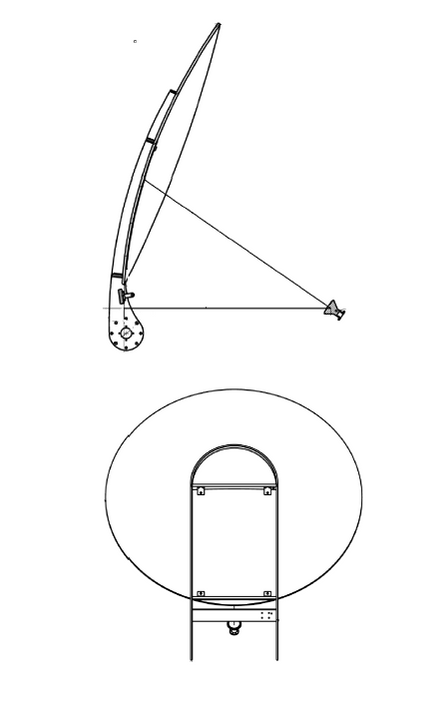

Norsat ACC-101037 30cm Ka-Band Antenna, One Dish Reflector, Feed, OMT
Product Code:
ACC-101037
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
| ANTENNA SPECIFICATIONS | |
| Axis Ratio | ≤1.6dB |
| Feed Output Interface | Receiving: WR42 Transmit: WR28 |
| First Sidelobe Level | ≤-14dB |
| Isolation | Tx: ≥85 dB |
| Polarization | RX: RHCP; TX: LHCP |
| Reflector Aperture And Antenna Form | 30cm Single Reflector Offside Parabolic |
| RF Power Capacity | ≥50W |
| Rx Frequency | 17.70 - 20.20 GHz |
| Rx Gain | 32.5+20lg(f/19) dBi |
| Tx Frequency | 27.50 - 30.00 GHz |
| Tx Gain | 36.4+20lg(f/30) dBi |
| ENVIRONMENTAL SPECIFICATIONS | |
| Dust Resistance | not less than 0.5g/m³ |
| IP Rating | IP65 |
| Operating Temperature | -40 to +55℃ |
| Relative Humidity | 2% to 98% (25 ° C) |
| Salt Spray Resistance | Adapted to working conditions in coastal areas |
| Storage Temperature | -55 ° C to +70 ° C |
| Wind Resistance | Working status: Stable operation at a wind speed of 13.6 m/s Collection status: Undamaged at wind speed of 20.8 m/s |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517700000 |
5 customers are viewing this product
Details
| ANTENNA SPECIFICATIONS | |
| Axis Ratio | ≤1.6dB |
| Feed Output Interface | Receiving: WR42 Transmit: WR28 |
| First Sidelobe Level | ≤-14dB |
| Isolation | Tx: ≥85 dB |
| Polarization | RX: RHCP; TX: LHCP |
| Reflector Aperture And Antenna Form | 30cm Single Reflector Offside Parabolic |
| RF Power Capacity | ≥50W |
| Rx Frequency | 17.70 - 20.20 GHz |
| Rx Gain | 32.5+20lg(f/19) dBi |
| Tx Frequency | 27.50 - 30.00 GHz |
| Tx Gain | 36.4+20lg(f/30) dBi |
| ENVIRONMENTAL SPECIFICATIONS | |
| Dust Resistance | not less than 0.5g/m³ |
| IP Rating | IP65 |
| Operating Temperature | -40 to +55℃ |
| Relative Humidity | 2% to 98% (25 ° C) |
| Salt Spray Resistance | Adapted to working conditions in coastal areas |
| Storage Temperature | -55 ° C to +70 ° C |
| Wind Resistance | Working status: Stable operation at a wind speed of 13.6 m/s Collection status: Undamaged at wind speed of 20.8 m/s |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517700000 |
