Norsat International Inc.

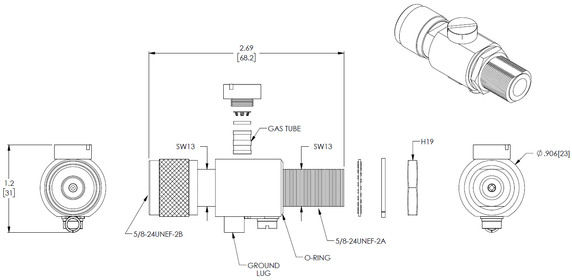

Norsat ACC-101007 Lightning Surge Protector
Product Code:
ACC-101007
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.11 KGS
Width:
2.30
(cm)
Height:
3.10
(cm)
Depth:
6.80
(cm)
$0.00
| RF SPECIFICATIONS | |
| Frequency Range | 0 - 6 GHz |
| Impedance | 50Ω |
| Insertion Loss | 0.6 dB max. (0 - 6 GHz) |
| VSWR | 1.2 : 1 max. (0 - 6 GHz) |
| ELECTRICAL SPECIFICATIONS | |
| Gas Tube Breakdown Voltage | 90 V ± 20% |
| PHYSICAL SPECIFICATIONS | |
| Body Material | Nickel Plated Brass |
| Connector 1 | N-Connector (Male) |
| Connector 2 | Bulkhead N-Connector (Female) |
| Gasket Material | Rubber |
| Pin Material | Gold Plated Brass |
| Product Height | 31 mm max. |
| Product Length | 68 mm max. |
| Product Weight | 0.11 kg |
| Product Width | 23 mm max. |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8536308000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| RF SPECIFICATIONS | |
| Frequency Range | 0 - 6 GHz |
| Impedance | 50Ω |
| Insertion Loss | 0.6 dB max. (0 - 6 GHz) |
| VSWR | 1.2 : 1 max. (0 - 6 GHz) |
| ELECTRICAL SPECIFICATIONS | |
| Gas Tube Breakdown Voltage | 90 V ± 20% |
| PHYSICAL SPECIFICATIONS | |
| Body Material | Nickel Plated Brass |
| Connector 1 | N-Connector (Male) |
| Connector 2 | Bulkhead N-Connector (Female) |
| Gasket Material | Rubber |
| Pin Material | Gold Plated Brass |
| Product Height | 31 mm max. |
| Product Length | 68 mm max. |
| Product Weight | 0.11 kg |
| Product Width | 23 mm max. |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8536308000 |
| Warranty | 1 year |
