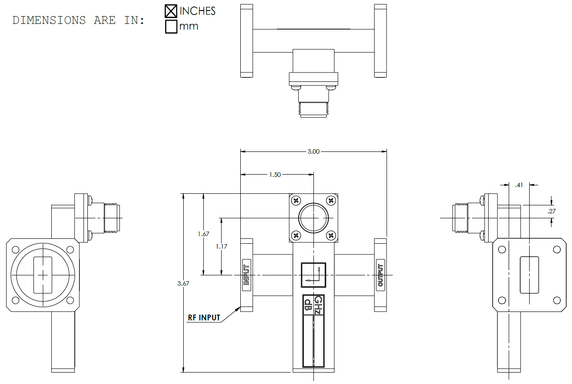

Norsat ACC-100936 Ku-Band Cross Guide Coupler
Product Code:
ACC-100936
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
7.60
(cm)
Height:
5.80
(cm)
Depth:
9.30
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Frequency | 10.70 - 12.75 GHz |
| Product Family | Coupler |
| Waveguide Flange | WR-75 |
| RF SPECIFICATIONS | |
| Gain Flatness (Over 1000Mhz) | ± 0.4 dB |
| Gain Flatness (Over 2000Mhz) | ± 0.7 dB |
| Gain Flatness (Over 500Mhz) | ± 0.2 dB |
| Gain Flatness (Over Full Band) | ± 1.2 dB |
| Sensitivity | ± 0.2 dB slope max. |
| Variation | ± 0.5 dB max. |
| VSWR | 1.06 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Coupling | 20 dB Forward |
| Power Handling | 2 kW CW |
| INTERFACE SPECIFICATIONS | |
| Coupling Connector | N-Connector |
| RF Input Flange | Cover Grooved / 6-32 Tapped Holes |
| RF Output Flange | Cover Flat / Clear Holes 0.144 / 0.147 |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Product Height | 58 mm |
| Product Length | 93 mm |
| Product Width | 76 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517700000 |
| Warranty | 1 year |
