Norsat International Inc.

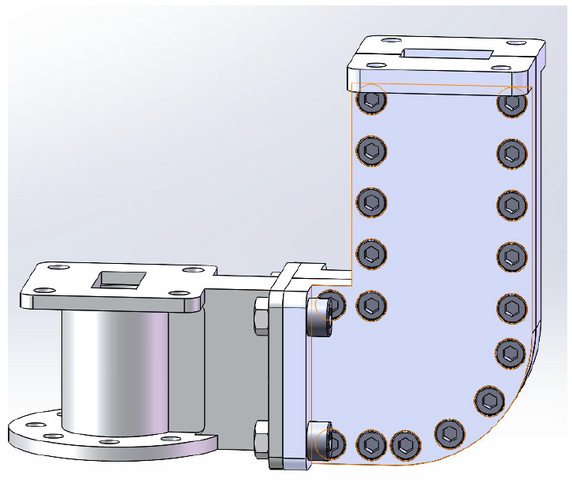

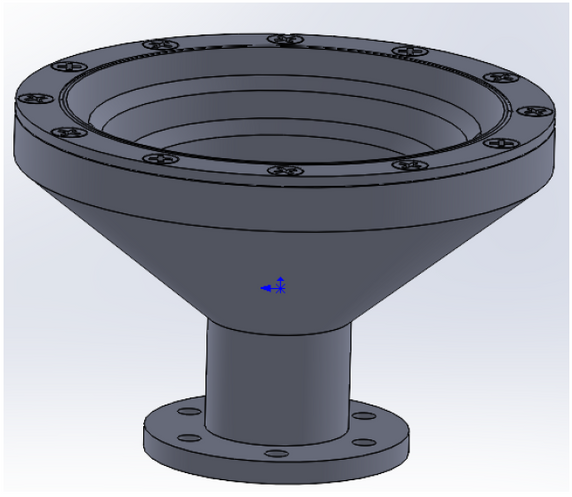

Norsat ACC-100913 Ku-Band feed Assembly w/ OMT
Product Code:
ACC-100913
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Color | White |
| ANTENNA SPECIFICATIONS | |
| Cross Polarization Isolation | OMT + Waveguide (Rx/Tx): 35 dB / 35 dB Feed: >50 dB |
| Polarization | Linear |
| RF SPECIFICATIONS | |
| 3Db Beamwidth | 34° (H and E plane) |
| Gain | 14.5 dBi |
| Rx Frequency | 10.70 - 12.75 GHz |
| Rx Insertion Loss | ≤0.3 dB |
| Rx Interface | WR-75 Flat |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Insertion Loss | ≤0.2 dB |
| Tx Interface | WR-75 Flat |
| Tx Rx Isolation Port Isolation | 80 dB min. |
| VSWR | OMT + Waveguide (Rx/Tx): 1.3 : 1 / 1.25 : 1 Feed: 1.25 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Handling | OMT + Waveguide: 1 kW Feed: 2 kW |
| INTERFACE SPECIFICATIONS | |
| Waveguide Flange | Circular Internal Diameter: 19mm |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Material | Aluminum |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517700000 |
