Atlantic Microwave KU-BAND TEST LOOP TRANSLATOR MODULE - SYNTHESISED LO
$11,259.96
Zoom the image with the mouse
Norsat International Inc.

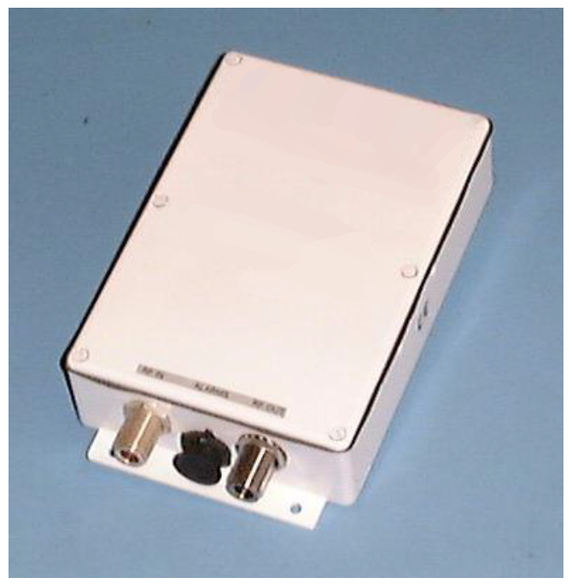

Norsat ACC-100906 Test Loop Translator X Band
Product Code:
ACC-100906
Condition:
New
Availability:
10 - 12 Weeks
Weight:
1.40 KGS
Width:
23.00
(cm)
Height:
9.50
(cm)
Depth:
29.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | X-Band |
| Connector Type | Multi-pin, circular weatherproof (mating parts supplied) |
| External Ref Freq | 10 MHz, -5 to +5 dBm |
| Input Frequency Band 1 | 6.7 - 7.1 GHz |
| Output Frequency Band 1 | 7.4 - 7.8 GHz |
| Reference Type | Auto Reference (automatically switches to internal reference if no external reference detected) |
| RF SPECIFICATIONS | |
| Aging | <5 x 10^-9 per day, <5 x 10^-7 per year |
| Allan Deviation | 1 x 10^-11 over 1s |
| Attenuator Range | 30 dB nominal, 0.1 dB step, remote via Ethernet |
| Conversion Loss | 20dB ±2dB at 0dB attenuation |
| Gain Flatness (Over Temperature) | ±0.25 dB from 0 to 40°C |
| Input P1db | +10 dBm min. |
| Input Return Loss | >18 dB |
| Max Input No Damage | +15 dBm |
| Mute Isolation | 60 dB min. |
| Output Return Loss | 15 dB |
| Phase Noise 0.1Khz Offset Max | -75 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -125 dBc/Hz |
| Temperature Stability | <5 x 10^-8 over 0 to 60°C |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 500 mA nomimal |
| Input Power | Fed in on control interface connection |
| Power Requirements | +16.5 to 35 VDC |
| INTERFACE SPECIFICATIONS | |
| Alarm | Summary alarm contacts |
| Input Connector | N-Connector |
| M&C Interface | Ethernet, Embedded Web Server & SNMP network management support |
| Output Connector | N-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Compliance | EMC: EN 55022, part B & EN 50082-1 Safety: EN 60950 |
| Humidity | 0 to 100% condensing |
| IP Rating | IP66 |
| Temperature Operational | -25°C to +55°C (less solar gain) |
| PHYSICAL SPECIFICATIONS | |
| Material | Die-cast Aluminum |
| Product Height | 95 mm |
| Product Length | 290mm .plus connections & mounting flanges |
| Product Weight | 1.4 kg |
| Product Width | 230 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in United Kingdom |
| ECCN Number | EAR99 |
| Harmonized System Code | 8517700000 |
