Norsat International Inc.
Norsat ACC-100900 C-Band Diplexer
Product Code:
ACC-100900
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.60 KGS
Width:
7.60
(cm)
Height:
2.60
(cm)
Depth:
8.10
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Connector Type | SMA (Female) |
| Product Family | Diplexer |
| Rejection | 65 dB min @ F0 ± 300 MHz |
| Rx Frequency | 4.9 - 5.1 GHz |
| Tx Frequency | 4.4 - 4.6 GHz |
| RF SPECIFICATIONS | |
| Input VSWR | ≤ 1.3 : 1 |
| Insertion Loss | ≤ 0.7 dB |
| Output VSWR | ≤ 1:3 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| Power Handling | 40 W (46 dBm) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa - 106 KPa |
| Indoor Status | Indoor |
| Relative Humidity | 5% - 95% |
| Temperature Operational | -40 to +85°C |
| Temperature Storage | -40 to +95°C |

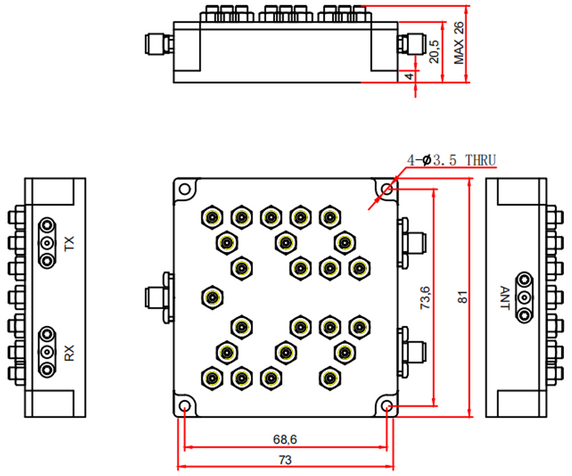

| PHYSICAL SPECIFICATIONS | |
| Product Height | 26 mm |
| Product Length | 81 mm |
| Product Weight | 0.60 kg |
| Product Width | 76 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517799000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Connector Type | SMA (Female) |
| Product Family | Diplexer |
| Rejection | 65 dB min @ F0 ± 300 MHz |
| Rx Frequency | 4.9 - 5.1 GHz |
| Tx Frequency | 4.4 - 4.6 GHz |
| RF SPECIFICATIONS | |
| Input VSWR | ≤ 1.3 : 1 |
| Insertion Loss | ≤ 0.7 dB |
| Output VSWR | ≤ 1:3 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| Power Handling | 40 W (46 dBm) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa - 106 KPa |
| Indoor Status | Indoor |
| Relative Humidity | 5% - 95% |
| Temperature Operational | -40 to +85°C |
| Temperature Storage | -40 to +95°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 26 mm |
| Product Length | 81 mm |
| Product Weight | 0.60 kg |
| Product Width | 76 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517799000 |
| Warranty | 1 year |
