Norsat International Inc.

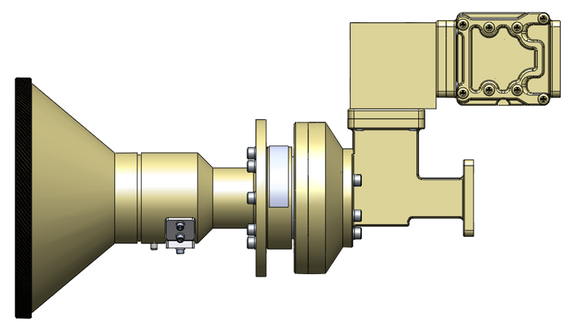

Norsat ACC-100895 Ku-Band feed Assembly w/ OMT and TRF
Product Code:
ACC-100895
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| RF SPECIFICATIONS | |
| F/D Ratio | 0.8 f/D |
| Insertion Loss | OMT: 0.4 dB max. Rear Rotary Joint w/ Integrated Receive Reject Filter: 0.45 dB max |
| Rejection | Receive Reject Filter: 50 dB min. |
| Rx Frequency | 10.75 - 12.75 GHz |
| Rx Interface | WR-75 Flat |
| Rx Tx Isolation Port Isolation | 40 dB min. |
| Rx VSWR | OMT Receive Port: 1.25 : 1 max. Rear Rotary Joint: 1.4 : 1 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Interface | WR-75 Flat |
| Tx Rx Isolation Port Isolation | 80 dB min. |
| Tx VSWR | OMT Transmit Port: 1.25 : 1 max. |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |

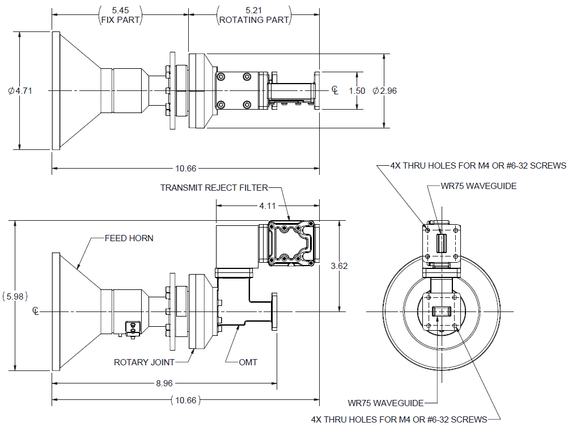

| Product Dimensions (Lxwxh) | 10.73 inch x 4.71 inch x 7.54 inch |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517700000 |
