Norsat ACC-100601 MMIC, 9W Ka-Band Power Amplifier 27.5-31 GHZ, GA-N, TGA-2595, CFE

Name: Norsat ACC-100601 MMIC, 9W Ka-Band Power Amplifier 27.5-31 GHZ, GA-N, TGA-2595, CFE
Brand: Norsat International Inc.
SKU: ACC-100601
Availability: InStock

No reviews yet

Product Code: ACC-100601

Condition: New

Availability: 10 - 12 Weeks

Weight: 0.00 KGS

$0.00

KEY SPECIFICATIONS
Frequency	27.5 - 31.0 GHz
Output Power Rated	9W
RF SPECIFICATIONS

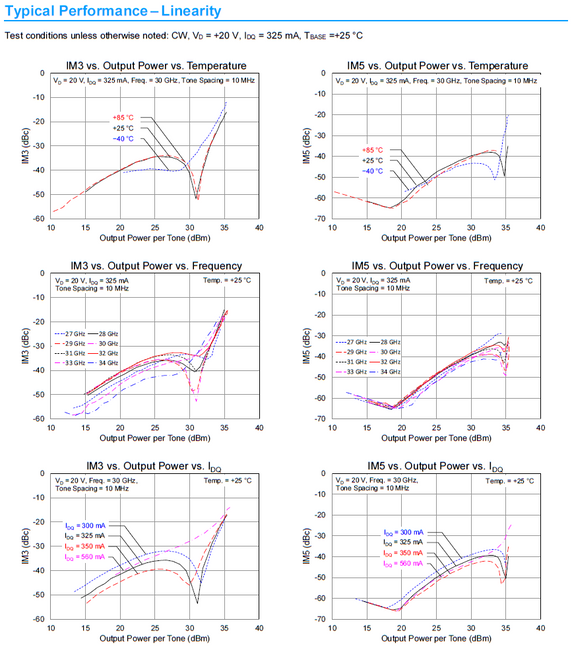

IM3	-30 dBc @ 33 dBm/tone
IM5	-35 dBc @ 33 dBm/tone
Output Power	39 dBm (PIN = 22 dBm), CW

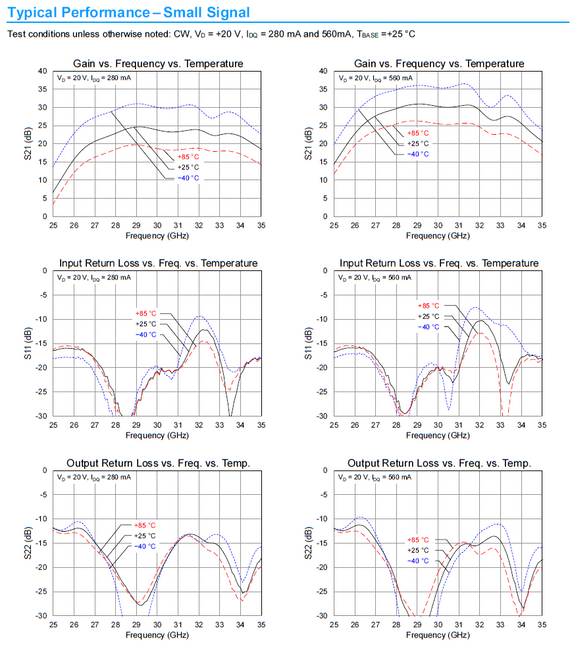

Return Loss	20 dB
Small Signal Gain	30 dB
ELECTRICAL SPECIFICATIONS

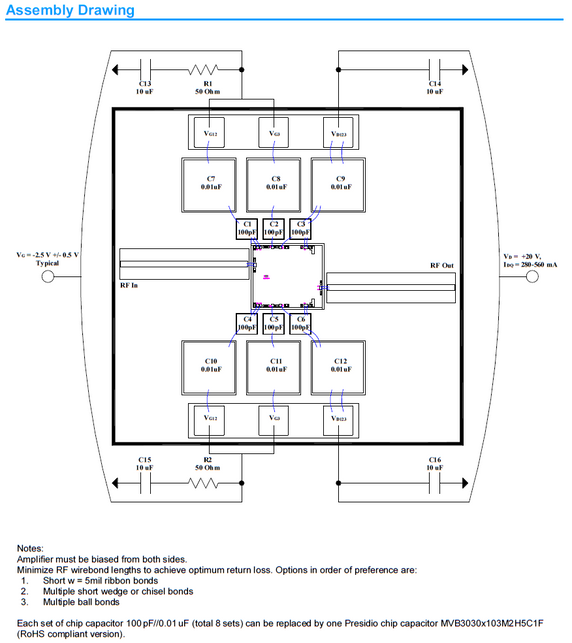

Bias	VD = +20 V IDQ = 280-560 mA VG ≈ -2.5 V typ.

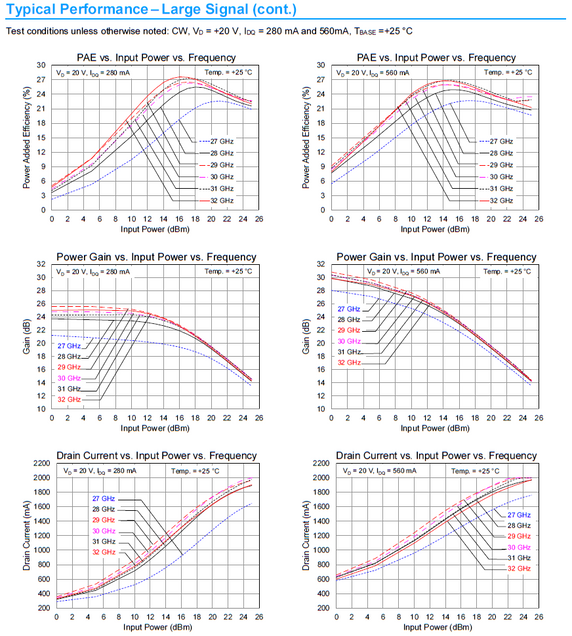

PAE	22% (PIN = 22 dBm), CW
PHYSICAL SPECIFICATIONS
Product Dimensions (Lxwxh)	Chip Dimensions: 3.60 x 3.24 x 0.10 mm
ADDITIONAL INFORMATION
Country Of Origin	Made in United States of America
ECCN Number	3A001.B.2.C
Ex Works	Richmond, BC, Canada
