Norsat International Inc.
Norsat 9700HICDN 9700 Dual-Band Ka-Band PLL LNB

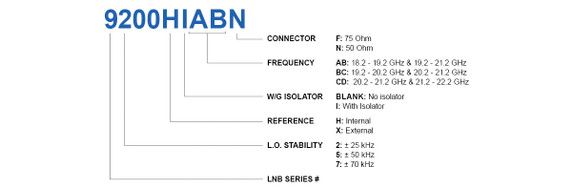

Product Code:
9700HICDN
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.47 KGS
Width:
6.00
(cm)
Height:
4.50
(cm)
Depth:
14.43
(cm)
$1,884.00
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 20.20 - 21.20 GHz |
| Input Frequency Band 2 | 21.20 - 22.20 GHz |
| LO Frequency 1 | 19.25 GHz |
| LO Frequency 2 | 20.25 GHz |
| LO Stability | ±70 kHz |
| LO Type | PLL |
| Noise Figure Max | 1.8 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Dual-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p |
| Input VSWR | 1.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.3 : 1 max. |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| Isolator | With Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 45 mm |
| Product Length | 144.3 mm |
| Product Weight | 0.465 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.34 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.85 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 118 x 60 x 45 mm |
| Unit Package Height | 45 mm |
| Unit Package Length | 118 mm |
| Unit Package Weight | 0.4 kg |
| Unit Package Width | 60 mm |
| Warranty | 3 years |
