Norsat International Inc.

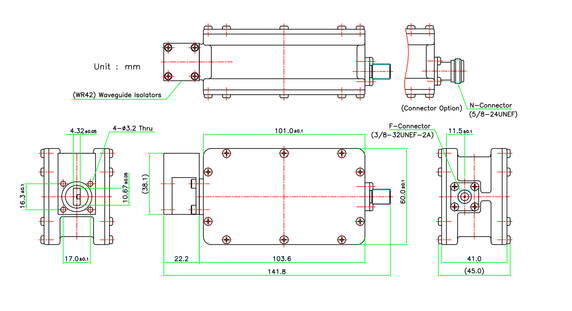

Norsat 9700HCDF 9000 Dual-Band Ka-Band PLL LNB
Product Code:
9700HCDF
Condition:
New
Availability:
YES
Weight:
0.42 KGS
Width:
12.00
(cm)
Height:
4.50
(cm)
Depth:
6.00
(cm)
$1,399.00
Norsat 9700HCDF 9000 Dual-Band Ka-Band PLL LNB
| KEY SPECIFICATIONS | |
|---|---|
| band | Ka-Band |
| input frequency band 1 | Ka-Band: 20.20 - 21.20 GHz |
| input frequency band 2 | Ka-Band: 21.20 - 22.20 GHz |
| lo stability | +/- 70 kHz |
| lo type | PLL |
| noise figure | 1.3dB typ. |
| output frequency 1 | L-Band: 950 - 1950 MHz |
| output frequency 2 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
|---|---|
| control signal 1 | 13 V |
| control signal 2 | 18 V |
| conversion gain | 60 dB typ |
| input VSWR | 2.5 : 1 |
| lo frequency 1 | 17.25 GHz |
| lo frequency 2 | 18.25 GHz |
| output VSWR | 2.5 : 1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| current drain | 400 mA |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF input connector | WR-42 waveguide grooved |
| RF output connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40 to +60°C |
| temperature storage | -40 to +80°C |
| Weight | 420g |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| dimensions (LxWxH) | 120 x 60 x 45 mm |
5 customers are viewing this product
Details
Norsat 9700HCDF 9000 Dual-Band Ka-Band PLL LNB
| KEY SPECIFICATIONS | |
|---|---|
| band | Ka-Band |
| input frequency band 1 | Ka-Band: 20.20 - 21.20 GHz |
| input frequency band 2 | Ka-Band: 21.20 - 22.20 GHz |
| lo stability | +/- 70 kHz |
| lo type | PLL |
| noise figure | 1.3dB typ. |
| output frequency 1 | L-Band: 950 - 1950 MHz |
| output frequency 2 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
|---|---|
| control signal 1 | 13 V |
| control signal 2 | 18 V |
| conversion gain | 60 dB typ |
| input VSWR | 2.5 : 1 |
| lo frequency 1 | 17.25 GHz |
| lo frequency 2 | 18.25 GHz |
| output VSWR | 2.5 : 1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| current drain | 400 mA |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF input connector | WR-42 waveguide grooved |
| RF output connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40 to +60°C |
| temperature storage | -40 to +80°C |
| Weight | 420g |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| dimensions (LxWxH) | 120 x 60 x 45 mm |
