Norsat International Inc.
Norsat 9000 Series 9500HCDN Ka-Band Dual-Band LNB
Product Code:
9500HCDN
Availability:
YES
Weight:
0.40 KGS
Width:
6.00
(cm)
Height:
4.50
(cm)
Depth:
11.80
(cm)
$1,522.00

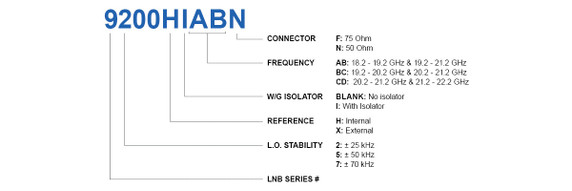

Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. LNB,KA-PLL,DUAL,20.20-22.20GHZ,LO:+/- 50KHZ,NF:1.8DB,N-CONN, NORSAT LOGO
| KEY SPECIFICATIONS | |
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | PLL |
| # of onboard LOs | Dual-band |
| LO Stability | +/- 50 kHz |
| Noise Figure | 1.6 - 1.8 dB |
| Input Frequency - Band 1 | Ka-Band: 20.20 - 21.20 GHz |
| Input Frequency - Band 2 | Ka-Band: 21.20 - 22.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| Output Frequency 2 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 19.25 GHz |
| LO Frequency 2 | 20.25 GHz |
| Control Signal 1 | 13 V |
| Control Signal 2 | 18 V |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -78 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 60 dB typ |
| Input VSWR | 2.5 : 1 |
| Output VSWR | 2.5 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 - 24 V |
| Current Drain | 400 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 118 x 60 x 45 mm |
| Weight | 400 g |
5 customers are viewing this product
Details
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. LNB,KA-PLL,DUAL,20.20-22.20GHZ,LO:+/- 50KHZ,NF:1.8DB,N-CONN, NORSAT LOGO
| KEY SPECIFICATIONS | |
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | PLL |
| # of onboard LOs | Dual-band |
| LO Stability | +/- 50 kHz |
| Noise Figure | 1.6 - 1.8 dB |
| Input Frequency - Band 1 | Ka-Band: 20.20 - 21.20 GHz |
| Input Frequency - Band 2 | Ka-Band: 21.20 - 22.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| Output Frequency 2 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 19.25 GHz |
| LO Frequency 2 | 20.25 GHz |
| Control Signal 1 | 13 V |
| Control Signal 2 | 18 V |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -78 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 60 dB typ |
| Input VSWR | 2.5 : 1 |
| Output VSWR | 2.5 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 - 24 V |
| Current Drain | 400 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 118 x 60 x 45 mm |
| Weight | 400 g |
