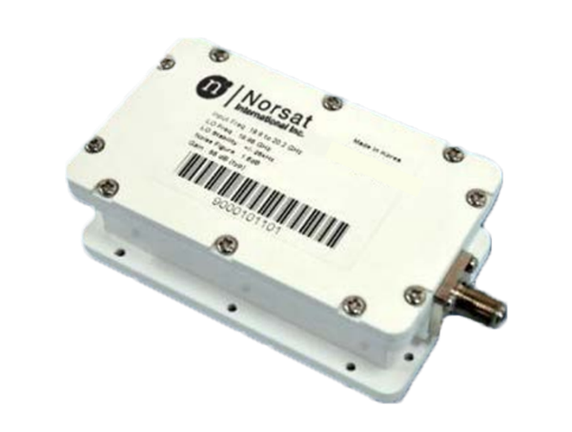

Norsat 9500HAEB-3N Dual-Band Ka-Band PLL LNB
Product Code:
9500HAEB-3N
Condition:
New
Availability:
Yes
Weight:
0.50 KGS
Width:
13.30
(cm)
Height:
7.00
(cm)
Depth:
3.90
(cm)
$3,123.00
| KEY SPECIFICATIONS
| |
| Band | Ka-Band |
| Input Frequency Band 1 | Ka-Band: 17.70 - 18.95 GHz |
| Input Frequency Band 2 | Ka-Band: 18.95 - 20.20 GHz |
| Lo Stability | +/- 25 kHz |
| Lo Type | PLL |
| Noise Figure | 1.3dB typ., 1.6dB max. at room temp. @ CF |
| Output Frequency 1 | L-Band: 950 - 2200 MHz |
| Output Frequency 2 | L-Band: 950 - 2200 MHz |
| RF SPECIFICATIONS
| |
| Control Signal 1 | 13 V |
| Control Signal 2 | 18 V |
| Conversion Gain | 58 dB typ., 55dB min,. 65 dB xax. |
| Image Rejection | 40 dBc min |
| Input VSWR | 2.5 : 1 |
| Lo Frequency 1 | 16.75 GHz |
| Lo Frequency 2 | 18.00 GHz |
| Output VSWR | 2.2 : 1 |
| Spurious | -60 dBc (in band) ; -50 dBc (out of band) |
| ELECTRICAL SPECIFICATIONS
| |
| Current Drain | 350 mA |
| INTERFACE SPECIFICATIONS
| |
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| Temperature Operational | -40 to +60°C |
| Weight | 500g |
