Norsat International Inc.

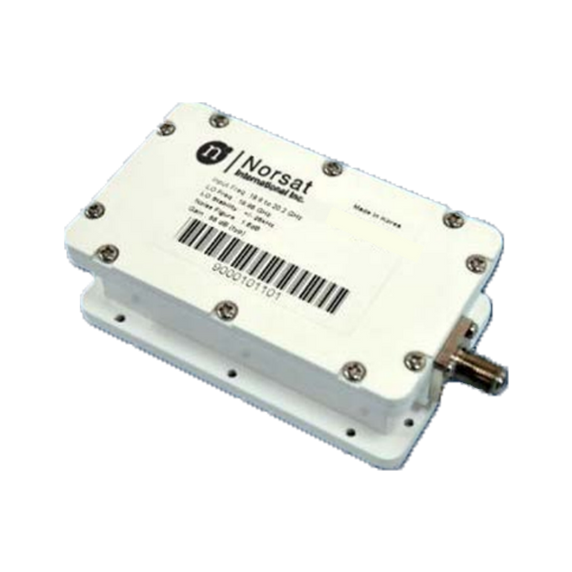

Norsat 9000 Series 9200HT-3F Ka-Band LNB
Product Code:
9200HT-3F
Availability:
YES
Weight:
0.45 KGS
Width:
6.00
(cm)
Height:
4.50
(cm)
Depth:
11.80
(cm)
$4,400.00
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. LNB,KA-PLL,TRIPLE,17.30-20.20GHZ,LOF:16.35-18.35GHZ,LO:+/-25KHZ,NF:1.5DB,F-CONN,WHITE
| KEY SPECIFICATIONS | |
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | PLL |
| # of onboard LOs | Triple-band |
| LO Stability | +/- 25 kHz |
| Noise Figure | 1.5 dB |
| Input Frequency - Band 1 | Ka-Band: 17.30 - 18.30 GHz |
| Input Frequency - Band 2 | Ka-Band: 18.30 - 19.30 GHz |
| Input Frequency - Band 3 | Ka-Band: 19.30 - 20.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| Output Frequency 2 | L-Band: 950 - 1950 MHz |
| Output Frequency 3 | L-Band: 950 - 1850 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 16.35 GHz |
| LO Frequency 2 | 17.35 GHz |
| LO Frequency 3 | 18.35 GHz |
| Control Signal 1 | 13 V |
| Control Signal 2 | 18 V |
| Control Signal 3 | 13V + 22 KHz tone |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Conversion Gain | 58 dBm min |
| Gain Variation over operating band | 4.0 dB p-p |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Spurious | -60 dBc (in band) ; -50 dBc (out of band) |
| Output P1dB compression point | 5 dBm |
| Image Rejection | 40 dBc min |
| ELECTRICAL SPECIFICATIONS | |
| Current Drain | 350 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-50 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 133 x 70 x 39 mm |
| Weight | 500 g |
5 customers are viewing this product
Details
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. LNB,KA-PLL,TRIPLE,17.30-20.20GHZ,LOF:16.35-18.35GHZ,LO:+/-25KHZ,NF:1.5DB,F-CONN,WHITE
| KEY SPECIFICATIONS | |
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | PLL |
| # of onboard LOs | Triple-band |
| LO Stability | +/- 25 kHz |
| Noise Figure | 1.5 dB |
| Input Frequency - Band 1 | Ka-Band: 17.30 - 18.30 GHz |
| Input Frequency - Band 2 | Ka-Band: 18.30 - 19.30 GHz |
| Input Frequency - Band 3 | Ka-Band: 19.30 - 20.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| Output Frequency 2 | L-Band: 950 - 1950 MHz |
| Output Frequency 3 | L-Band: 950 - 1850 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 16.35 GHz |
| LO Frequency 2 | 17.35 GHz |
| LO Frequency 3 | 18.35 GHz |
| Control Signal 1 | 13 V |
| Control Signal 2 | 18 V |
| Control Signal 3 | 13V + 22 KHz tone |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Conversion Gain | 58 dBm min |
| Gain Variation over operating band | 4.0 dB p-p |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Spurious | -60 dBc (in band) ; -50 dBc (out of band) |
| Output P1dB compression point | 5 dBm |
| Image Rejection | 40 dBc min |
| ELECTRICAL SPECIFICATIONS | |
| Current Drain | 350 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-50 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 133 x 70 x 39 mm |
| Weight | 500 g |
Download
| Download Name | |
| Norsat 9000 Series 9200HT-3F Ka-Band LNB Data Sheet | |
