Norsat International Inc.

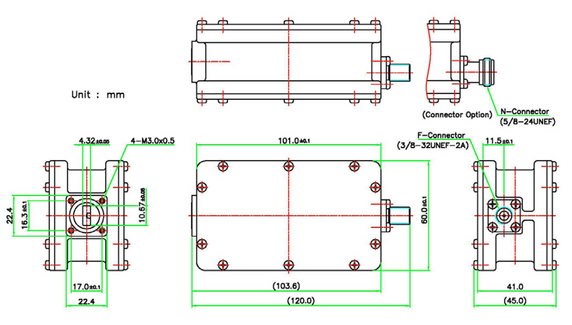

Norsat 9200HIEN-4 9200 Single-Band Ka-Band PLL LNB
Product Code:
9200HIEN-4
Weight:
0.48 KGS
Width:
14.50
(cm)
Height:
6.50
(cm)
Depth:
9.50
(cm)
$1,383.00
| KEY SPECIFICATIONS | |
| band | Ka-Band |
| input frequency band 1 | 17.20 - 18.20 GHz |
| LO frequency 1 | 17.25 GHz |
| LO stability | ±25 kHz |
| LO type | PLL |
| noise figure max | 1.3 dB |
| noise figure typ | 1.6 dB |
| number of onboard LOs | Single-Band |
| output frequency band 1 | 950 - 1950 MHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
| conversion gain max | 65 dB |
| conversion gain min | 55 dB |
| conversion gain typ | 60 dB |
| input VSWR | 2.5 : 1 max. |
| output P1dB | + 5 dBm min. |
| output VSWR | 2.5 : 1 max. |
| phase noise 100kHz offset max | -95 dBc/Hz |
| phase noise 10kHz offset max | -80 dBc/Hz |
| phase noise 1kHz offset max | -70 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| current consumption | 400 mA |
| power requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF connector | N-Connector (waterproof) |
| isolator | With Isolator |
| RF input connector | WR-42 waveguide grooved (waterproof) |
| ENVIRONMENTAL SPECIFICATIONS | |
| temperature operational | -40 to +60°C |
| temperature storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| product dimensions (LxWxH) | 120 x 60 x 45 mm |
| product weight | 0.42 kg |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| band | Ka-Band |
| input frequency band 1 | 17.20 - 18.20 GHz |
| LO frequency 1 | 17.25 GHz |
| LO stability | ±25 kHz |
| LO type | PLL |
| noise figure max | 1.3 dB |
| noise figure typ | 1.6 dB |
| number of onboard LOs | Single-Band |
| output frequency band 1 | 950 - 1950 MHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
| conversion gain max | 65 dB |
| conversion gain min | 55 dB |
| conversion gain typ | 60 dB |
| input VSWR | 2.5 : 1 max. |
| output P1dB | + 5 dBm min. |
| output VSWR | 2.5 : 1 max. |
| phase noise 100kHz offset max | -95 dBc/Hz |
| phase noise 10kHz offset max | -80 dBc/Hz |
| phase noise 1kHz offset max | -70 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| current consumption | 400 mA |
| power requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF connector | N-Connector (waterproof) |
| isolator | With Isolator |
| RF input connector | WR-42 waveguide grooved (waterproof) |
| ENVIRONMENTAL SPECIFICATIONS | |
| temperature operational | -40 to +60°C |
| temperature storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| product dimensions (LxWxH) | 120 x 60 x 45 mm |
| product weight | 0.42 kg |
Download
| Download Name | |
| 9200 Single-Band Ka-Band PLL LNB Data Sheet | |
