Norsat 9000 Series 9200HBCN Ka-Band Dual-Band LNB

No reviews yet
Product Code: 9200HBCN
Availability: YES
Weight: 0.40 KGS
Width: 6.00 (cm)
Height: 4.50 (cm)
Depth: 11.80 (cm)
$1,610.00

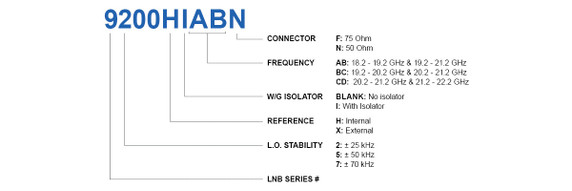

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. LNB,KA-PLL,DUAL,19.20-21.20GHZ,LO:+/- 25KHZ,NF:1.6DB, N-CONN, NORSAT LOGO



KEY SPECIFICATIONS
Product Family 9000 Series
Band Ka-Band
LO Type PLL
# of onboard LOs Dual-band
LO Stability +/- 25 kHz
Noise Figure 1.6 - 1.8 dB
Input Frequency - Band 1 Ka-Band: 19.20 - 20.20 GHz
Input Frequency - Band 2 Ka-Band: 20.20 - 21.20 GHz
Output Frequency 1 L-Band: 950 - 1950 MHz
Output Frequency 2 L-Band: 950 - 1950 MHz

RF SPECIFICATIONS
LO Frequency 1 18.25 GHz
LO Frequency 2 19.25 GHz
Control Signal 1 13 V
Control Signal 2 18 V
Phase Noise @ 1KHz offset -70 dBc/Hz
Phase Noise @ 10KHz offset -78 dBc/Hz
Phase Noise @ 100KHz offset -95 dBc/Hz
Conversion Gain 60 dB typ
Input VSWR 2.5 : 1
Output VSWR 2.5 : 1
Output P1dB compression point 5 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 12 - 24 V
Current Drain 400 mA

INTERFACE SPECIFICATIONS
RF Input Connector WR-42 waveguide grooved
RF Output Connector N-50 Ohm

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C
Temperature - Storage -40 to +80°C

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H) 118 x 60 x 45 mm
Weight 400 g
