Norsat International Inc.

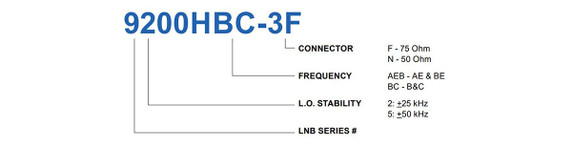

Norsat 9200HBC-3F - 9000H-3 Dual-Band Ka-Band PLL LNB
Product Code:
9200HBC-3F
Condition:
New
Availability:
YES
Weight:
0.50 KGS
Width:
12.00
(cm)
Height:
4.50
(cm)
Depth:
6.00
(cm)
$3,124.00
Norsat 9200HBC-3F - 9000H-3 Dual-Band Ka-Band PLL LNB
Typical Specifications
| KEY SPECIFICATIONS | |
|---|---|
| Band | Ka-Band |
| Input Frequency Band 1 | Ka-Band: 19.20 - 20.20 GHz |
| Input Frequency Band 2 | Ka-Band: 20.20 - 21.20 GHz |
| Lo Stability | +/- 25 kHz |
| Lo Type | PLL |
| Noise Figure | 1.3dB typ., 1.6dB max. at room temp. @ CF |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| Output Frequency 2 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
|---|---|
| Control Signal 1 | 13 V |
| Control Signal 2 | 18 V |
| Conversion Gain | 58 dB typ., 55dB min,. 65 dB xax. |
| Image Rejection | 40 dBc min |
| Input VSWR | 2.2 : 1 |
| Lo Frequency 1 | 18.25 GHz |
| Lo Frequency 2 | 19.25 GHz |
| Output VSWR | 2.0 : 1 |
| Spurious | -60 dBc (in band) ; -50 dBc (out of band) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Current Drain | 350 mA |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Humidity | 0 - 95% |
| Temperature Operational | -40 to +60°C |
| Weight | 500g |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Dimensions (LxWxH) | 133 x 70 x 39 mm |
5 customers are viewing this product
Details
Norsat 9200HBC-3F - 9000H-3 Dual-Band Ka-Band PLL LNB
Typical Specifications
| KEY SPECIFICATIONS | |
|---|---|
| Band | Ka-Band |
| Input Frequency Band 1 | Ka-Band: 19.20 - 20.20 GHz |
| Input Frequency Band 2 | Ka-Band: 20.20 - 21.20 GHz |
| Lo Stability | +/- 25 kHz |
| Lo Type | PLL |
| Noise Figure | 1.3dB typ., 1.6dB max. at room temp. @ CF |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| Output Frequency 2 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
|---|---|
| Control Signal 1 | 13 V |
| Control Signal 2 | 18 V |
| Conversion Gain | 58 dB typ., 55dB min,. 65 dB xax. |
| Image Rejection | 40 dBc min |
| Input VSWR | 2.2 : 1 |
| Lo Frequency 1 | 18.25 GHz |
| Lo Frequency 2 | 19.25 GHz |
| Output VSWR | 2.0 : 1 |
| Spurious | -60 dBc (in band) ; -50 dBc (out of band) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Current Drain | 350 mA |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Humidity | 0 - 95% |
| Temperature Operational | -40 to +60°C |
| Weight | 500g |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Dimensions (LxWxH) | 133 x 70 x 39 mm |
