Norsat International Inc.

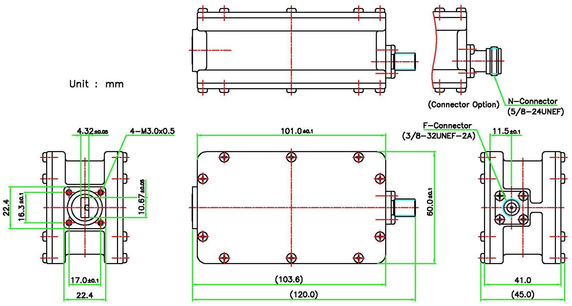

Norsat 9000XTN-810145 9000 Triple-Band Ka-Band PLL LNB
Product Code:
9000XTN-810145
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
6.00
(cm)
Height:
4.50
(cm)
Depth:
12.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 17.70 - 18.70 GHz |
| Input Frequency Band 2 | 18.70 -19.70 GHz |
| Input Frequency Band 3 | 19.70-20.70 GHz |
| LO Frequency 1 | 16.75 Ghz |
| LO Frequency 2 | 17.75 Ghz |
| LO Frequency 3 | 18.75 GHz |
| LO Type | PLL |
| Noise Figure Max | 1.7 dB |
| Number Of Onboard Los | Triple-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| Output Frequency Band 3 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 13V / 22kHz Tone |
| Control Signal 3 | 18V / No Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Any 36Mhz) | 1 dB p-p max. (Constant Temperature) |
| Gain Flatness (Over Full Band) | 5 dB p-p max. |
| Image Rejection | Band 1: 40 dBc min. Band 2: 30 dBc min. Band 3: 0 dBc min. |
| Input VSWR | 3 : 1 max. |
| LO Leakage | -45 dBm max. @ Input Port |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 450 mA max. |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 45 mm |
| Product Length | 120 mm |
| Product Weight | 400g |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 17.70 - 18.70 GHz |
| Input Frequency Band 2 | 18.70 -19.70 GHz |
| Input Frequency Band 3 | 19.70-20.70 GHz |
| LO Frequency 1 | 16.75 Ghz |
| LO Frequency 2 | 17.75 Ghz |
| LO Frequency 3 | 18.75 GHz |
| LO Type | PLL |
| Noise Figure Max | 1.7 dB |
| Number Of Onboard Los | Triple-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| Output Frequency Band 3 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 13V / 22kHz Tone |
| Control Signal 3 | 18V / No Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Any 36Mhz) | 1 dB p-p max. (Constant Temperature) |
| Gain Flatness (Over Full Band) | 5 dB p-p max. |
| Image Rejection | Band 1: 40 dBc min. Band 2: 30 dBc min. Band 3: 0 dBc min. |
| Input VSWR | 3 : 1 max. |
| LO Leakage | -45 dBm max. @ Input Port |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 450 mA max. |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 45 mm |
| Product Length | 120 mm |
| Product Weight | 400g |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
