Norsat 9000 Series 9000XTABCN Ka-Band Triple-Band LNB

No reviews yet

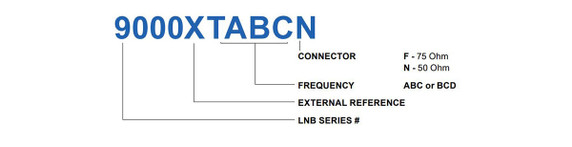

Product Code: 9000XTABCN
Availability: YES
Weight: 0.40 KGS
Width: 6.00 (cm)
Height: 4.50 (cm)
Depth: 12.00 (cm)
$2,244.00

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. LNB,KA-PLL,TRI,18.20-21.20GHZ,EXTREF,NF:1.6DB,N-CONN, NORSAT LOGO



KEY SPECIFICATIONS
Product Family 9000 Series
Band Ka-Band
LO Type External
# of onboard LOs Triple-band
LO Stability Phase Locked to External Reference
Noise Figure 1.6 dB
Input Frequency - Band 1 Ka-Band: 18.20 - 19.20 GHz
Input Frequency - Band 2 Ka-Band: 19.20 - 20.20 GHz
Input Frequency - Band 3 Ka-Band: 20.20 - 21.20 GHz
Output Frequency 1 L-Band: 950 - 1950 MHz
Output Frequency 2 L-Band: 950 - 1950 MHz
Output Frequency 3 L-Band: 950 - 1950 MHz

RF SPECIFICATIONS
LO Frequency 1 17.25 GHz
LO Frequency 2 18.25 GHz
LO Frequency 3 19.25 GHz
Control Signal 1 13 V
Control Signal 2 13V /22 KHz tone
Control Signal 3 18 V
Phase Noise @ 1KHz offset Depends on External Reference
Phase Noise @ 10KHz offset Depends on External Reference
Phase Noise @ 100KHz offset Depends on External Reference
Conversion Gain 60 dB typ
Input VSWR 2.5 : 1
Output VSWR 2.5 : 1
Output P1dB compression point 5 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 12 - 24 V
Current Drain 400 mA

INTERFACE SPECIFICATIONS
RF Input Connector WR-42 waveguide grooved
RF Output Connector N-50 Ohm

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C
Temperature - Storage -40 to +80°C

PHYSICAL SPECIFICATIONS

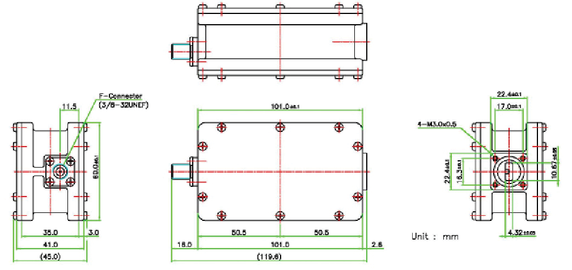

Dimensions (L x W x H) 120 x 60 x 45 mm
Weight 400 g
