Norsat International Inc.
Norsat 9000XT-3N 9000XT-3 Triple-Band Ka-Band EXT REF LNB
Product Code:
9000XT-3N
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.50 KGS
Width:
7.00
(cm)
Height:
3.90
(cm)
Depth:
13.30
(cm)
$4,435.00
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000XT-3 Series.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 17.30 - 18.30 GHz |
| Input Frequency Band 2 | 18.30 - 19.30 GHz |
| Input Frequency Band 3 | 19.30 - 20.20 GHz |
| LO Frequency 1 | 16.35 GHz |
| LO Frequency 2 | 17.35 GHz |
| LO Frequency 3 | 18.35 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 2.0 dB |
| Noise Figure Typ | 1.6 dB |
| Number Of Onboard Los | Triple-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| Output Frequency Band 3 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
| Control Signal 3 | 13V / 22kHz Tone |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 58 dB |
| Conversion Gain Typ | 65 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p max. |
| Image Rejection | 40 dBc min @ L.O. 16.35 ; 30 dBc min @ 17.35 ; 0 dBc @ 18.35 |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| Spurious | -60 dBc @ 10 dBm (in band) ; -50 dBc @ 10 dBm (out of band) |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 400 mA |
| Power Requirements | +11 to +26V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |

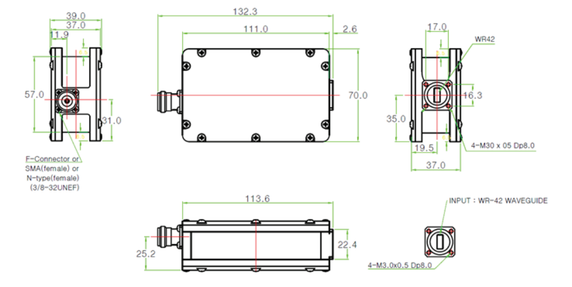

| PHYSICAL SPECIFICATIONS | |
| Product Height | 39 mm |
| Product Length | 133 mm |
| Product Weight | 0.5 kg |
| Product Width | 70 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.312 kg |
| Aluminium Total Value | $ 0.78 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Weight | 0.5 kg |
| Warranty | 3 years |
5 customers are viewing this product
Details
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000XT-3 Series.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 17.30 - 18.30 GHz |
| Input Frequency Band 2 | 18.30 - 19.30 GHz |
| Input Frequency Band 3 | 19.30 - 20.20 GHz |
| LO Frequency 1 | 16.35 GHz |
| LO Frequency 2 | 17.35 GHz |
| LO Frequency 3 | 18.35 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 2.0 dB |
| Noise Figure Typ | 1.6 dB |
| Number Of Onboard Los | Triple-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| Output Frequency Band 3 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
| Control Signal 3 | 13V / 22kHz Tone |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 58 dB |
| Conversion Gain Typ | 65 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p max. |
| Image Rejection | 40 dBc min @ L.O. 16.35 ; 30 dBc min @ 17.35 ; 0 dBc @ 18.35 |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| Spurious | -60 dBc @ 10 dBm (in band) ; -50 dBc @ 10 dBm (out of band) |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 400 mA |
| Power Requirements | +11 to +26V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 39 mm |
| Product Length | 133 mm |
| Product Weight | 0.5 kg |
| Product Width | 70 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.312 kg |
| Aluminium Total Value | $ 0.78 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Weight | 0.5 kg |
| Warranty | 3 years |
