Norsat International Inc.

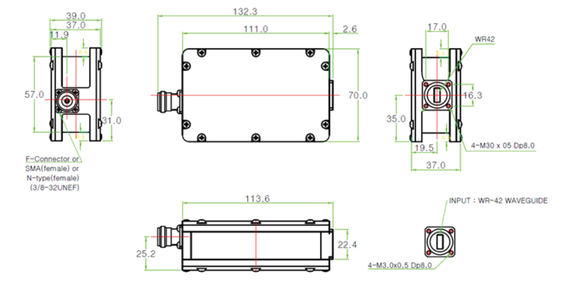

Norsat 9000XT-3F Triple-Band Ka-Band EXT REF LNB
Product Code:
9000XT-3F
Condition:
New
Availability:
YES
Weight:
0.50 KGS
Width:
11.40
(cm)
Height:
3.90
(cm)
Depth:
7.00
(cm)
$4,435.00
Norsat 9000XT-3F Triple-Band Ka-Band EXT REF LNB
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000XT-3 Series.
Typical Specifications
| KEY SPECIFICATIONS | |
|---|---|
| Band | Ka-Band |
| Input Frequency Band 1 | Ka-Band: 17.30 - 18.30 GHz |
| Input Frequency Band 2 | Ka-Band: 18.30 - 19.30 GHz |
| Input Frequency Band 3 | Ka-Band: 19.30 - 20.20 GHz |
| Lo Stability | Phase Locked to External Reference at 10MHz |
| Lo Type | External |
| Noise Figure | 2.0 dB |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| Output Frequency 2 | L-Band: 950 - 1950 MHz |
| Output Frequency 3 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
|---|---|
| Control Signal 1 | 13 V |
| Control Signal 2 | 18 V |
| Control Signal 3 | 13V & 22 KHz tone |
| Conversion Gain | 58 dBm min |
| Image Rejection | 40 dBc min @ L.O. 16.35 ; 30 dBc min @ 17.35 ; 0 dBc @ 18.35 |
| Input VSWR | 2.5 : 1 |
| Lo Frequency 1 | 16.35 GHz |
| Lo Frequency 2 | 17.35 GHz |
| Lo Frequency 3 | 18.35 GHz |
| Output VSWR | 2.5 : 1 |
| Spurious | -60 dBc @ 10 dBm (in band) ; -50 dBc @ 10 dBm (out of band) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Current Drain | 350 mA |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Humidity | 0 - 95% |
| Temperature Operational | -40 to +60°C |
| Weight | 500g |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Dimensions (LxWxH) | 114 x 70 x 39 mm |
5 customers are viewing this product
Details
Norsat 9000XT-3F Triple-Band Ka-Band EXT REF LNB
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000XT-3 Series.
Typical Specifications
| KEY SPECIFICATIONS | |
|---|---|
| Band | Ka-Band |
| Input Frequency Band 1 | Ka-Band: 17.30 - 18.30 GHz |
| Input Frequency Band 2 | Ka-Band: 18.30 - 19.30 GHz |
| Input Frequency Band 3 | Ka-Band: 19.30 - 20.20 GHz |
| Lo Stability | Phase Locked to External Reference at 10MHz |
| Lo Type | External |
| Noise Figure | 2.0 dB |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| Output Frequency 2 | L-Band: 950 - 1950 MHz |
| Output Frequency 3 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
|---|---|
| Control Signal 1 | 13 V |
| Control Signal 2 | 18 V |
| Control Signal 3 | 13V & 22 KHz tone |
| Conversion Gain | 58 dBm min |
| Image Rejection | 40 dBc min @ L.O. 16.35 ; 30 dBc min @ 17.35 ; 0 dBc @ 18.35 |
| Input VSWR | 2.5 : 1 |
| Lo Frequency 1 | 16.35 GHz |
| Lo Frequency 2 | 17.35 GHz |
| Lo Frequency 3 | 18.35 GHz |
| Output VSWR | 2.5 : 1 |
| Spurious | -60 dBc @ 10 dBm (in band) ; -50 dBc @ 10 dBm (out of band) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Current Drain | 350 mA |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Humidity | 0 - 95% |
| Temperature Operational | -40 to +60°C |
| Weight | 500g |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Dimensions (LxWxH) | 114 x 70 x 39 mm |
