Norsat International Inc.

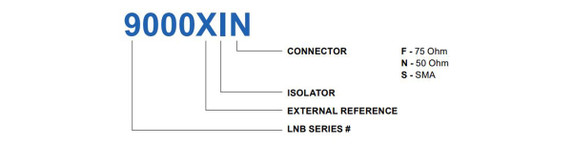

Norsat 9000XIF 9000 Single Band Ka-Band EXT REF LNB
Product Code:
9000XIF
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.70 KGS
Width:
7.70
(cm)
Height:
5.10
(cm)
Depth:
15.30
(cm)
$5,500.00
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000XI Series.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 20.20 - 21.20 GHz |
| LO Frequency 1 | 19.20 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.8 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 1000 - 2000 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 64 db |
| Conversion Gain Min | 56 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p max. |
| Input VSWR | 1.3 : 1 max. |
| Output P1db | + 15 dBm min. |
| Output VSWR | 1.8 : 1 max. |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 400 mA |
| Power Requirements | +15 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50 to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 51 mm |
| Product Length | 153 mm |
| Product Weight | 0.7 kg |
| Product Width | 77 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.36 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.9 |
| Country Of Origin | Made in Japan |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Weight | 0.7 kg |
| Warranty | 3 years |
