Norsat International Inc.

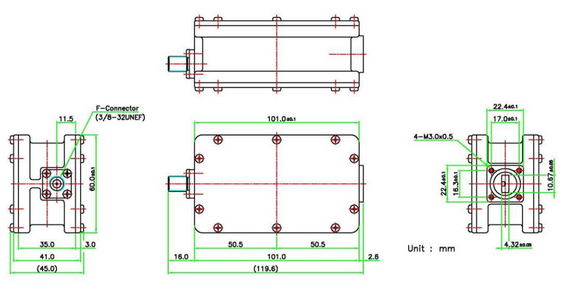

Norsat 9000XIABN 9000 Dual-Band Ka-Band Ext REF LNB
Product Code:
9000XIABN
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.42 KGS
Width:
6.00
(cm)
Height:
4.50
(cm)
Depth:
12.00
(cm)
$1,893.00
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 18.20 - 19.20 GHz |
| Input Frequency Band 2 | 19.20 - 20.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Frequency 2 | 18.25 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.3 dB |
| Noise Figure Typ | 1.6 dB |
| Number Of Onboard Los | Dual-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| Isolator | With Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 45 mm |
| Product Length | 120 mm |
| Product Weight | 0.42 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.36 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.9 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 65 mm |
| Package Length Case 1 | 145 mm |
| Package Width Case 1 | 95 mm |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Weight | 0.48 kg |
| Warranty | 3 years |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 18.20 - 19.20 GHz |
| Input Frequency Band 2 | 19.20 - 20.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Frequency 2 | 18.25 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.3 dB |
| Noise Figure Typ | 1.6 dB |
| Number Of Onboard Los | Dual-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| Isolator | With Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 45 mm |
| Product Length | 120 mm |
| Product Weight | 0.42 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.36 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.9 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 65 mm |
| Package Length Case 1 | 145 mm |
| Package Width Case 1 | 95 mm |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Weight | 0.48 kg |
| Warranty | 3 years |
Download
| Download Name | |
| Norsat 9000 Dual-Band Ka-Band Ext REF LNB Data Sheet | |
