Norsat International Inc.

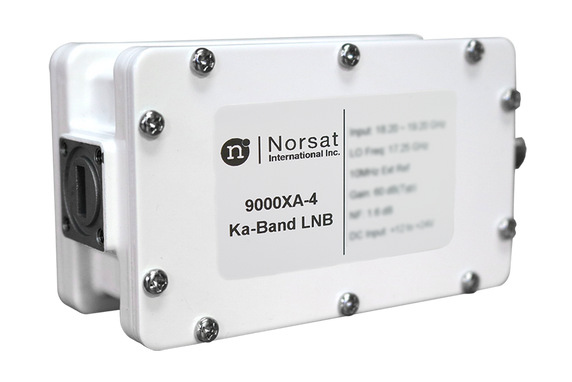

Norsat 9000XEF-4 Ka-Band Ext Ref 9000X-4 LNB
Product Code:
9000XEF-4
Condition:
New
Availability:
YES
Weight:
0.45 KGS
Width:
11.80
(cm)
Height:
4.50
(cm)
Depth:
6.00
(cm)
$722.00
Norsat 9000XEF-4 Ka-Band Ext Ref 9000X-4 LNB
Typical Specifications
Noise Figure 1.6 dB max. at room temp. @ CF
L.O. Stability Phase Locked to External Reference
Phase Noise (SSB) max. -70 dBc at 1 kHz
-80 dBc at 10 kHz
-95 dBc at 100 kHz
Input VSWR 2.5 : 1 max.
Output VSWR 2.5 : 1 max.
Gain 60 dB typ., 55 dB min.
Gain Flatness ≤ 4 dB p-p (over full band)
Output P1dB +5 dBm min.
L.O. Stability Phase Locked to External Reference
Phase Noise (SSB) max. -70 dBc at 1 kHz
-80 dBc at 10 kHz
-95 dBc at 100 kHz
Input VSWR 2.5 : 1 max.
Output VSWR 2.5 : 1 max.
Gain 60 dB typ., 55 dB min.
Gain Flatness ≤ 4 dB p-p (over full band)
Output P1dB +5 dBm min.
DC Power +12V to +24V DC
Current 400 mA max.
Input (waterproof) WR-42 waveguide grooved
Output (waterproof) F-Connector (75 ohm)
N-Connector (50 ohm)
Dimensions (L x W x H) 118mm x 60mm x 45mm
(4.64in x 2.36in x 1.77in)
Weight 450 g (15.87 oz)
Operating Temperature -30 to +60˚C
Storage Temperature -40 to +80˚C
External Ref Freq 10 MHz (sine-wave), -5 to +5 dBm
Current 400 mA max.
Input (waterproof) WR-42 waveguide grooved
Output (waterproof) F-Connector (75 ohm)
N-Connector (50 ohm)
Dimensions (L x W x H) 118mm x 60mm x 45mm
(4.64in x 2.36in x 1.77in)
Weight 450 g (15.87 oz)
Operating Temperature -30 to +60˚C
Storage Temperature -40 to +80˚C
External Ref Freq 10 MHz (sine-wave), -5 to +5 dBm
FREQUENCY BANDS
9000XA-4 9000XB-4 9000XC-4 9000XD-4 9000XE-4
Frequency Band (GHz) 18.2 - 19.2 19.2 - 20.2 20.2 - 21.2 21.2 - 22.2 17.2 - 18.2
L.O. Frequency (GHz) 17.25 18.25 19.25 20.25 16.25
IF Frequency (MHz) 950 - 1950 950 - 1950 950 - 1950 950 - 1950 950 - 1950
9000XA-4 9000XB-4 9000XC-4 9000XD-4 9000XE-4
Frequency Band (GHz) 18.2 - 19.2 19.2 - 20.2 20.2 - 21.2 21.2 - 22.2 17.2 - 18.2
L.O. Frequency (GHz) 17.25 18.25 19.25 20.25 16.25
IF Frequency (MHz) 950 - 1950 950 - 1950 950 - 1950 950 - 1950 950 - 1950
5 customers are viewing this product
Details
Norsat 9000XEF-4 Ka-Band Ext Ref 9000X-4 LNB
Typical Specifications
Noise Figure 1.6 dB max. at room temp. @ CF
L.O. Stability Phase Locked to External Reference
Phase Noise (SSB) max. -70 dBc at 1 kHz
-80 dBc at 10 kHz
-95 dBc at 100 kHz
Input VSWR 2.5 : 1 max.
Output VSWR 2.5 : 1 max.
Gain 60 dB typ., 55 dB min.
Gain Flatness ≤ 4 dB p-p (over full band)
Output P1dB +5 dBm min.
L.O. Stability Phase Locked to External Reference
Phase Noise (SSB) max. -70 dBc at 1 kHz
-80 dBc at 10 kHz
-95 dBc at 100 kHz
Input VSWR 2.5 : 1 max.
Output VSWR 2.5 : 1 max.
Gain 60 dB typ., 55 dB min.
Gain Flatness ≤ 4 dB p-p (over full band)
Output P1dB +5 dBm min.
DC Power +12V to +24V DC
Current 400 mA max.
Input (waterproof) WR-42 waveguide grooved
Output (waterproof) F-Connector (75 ohm)
N-Connector (50 ohm)
Dimensions (L x W x H) 118mm x 60mm x 45mm
(4.64in x 2.36in x 1.77in)
Weight 450 g (15.87 oz)
Operating Temperature -30 to +60˚C
Storage Temperature -40 to +80˚C
External Ref Freq 10 MHz (sine-wave), -5 to +5 dBm
Current 400 mA max.
Input (waterproof) WR-42 waveguide grooved
Output (waterproof) F-Connector (75 ohm)
N-Connector (50 ohm)
Dimensions (L x W x H) 118mm x 60mm x 45mm
(4.64in x 2.36in x 1.77in)
Weight 450 g (15.87 oz)
Operating Temperature -30 to +60˚C
Storage Temperature -40 to +80˚C
External Ref Freq 10 MHz (sine-wave), -5 to +5 dBm
FREQUENCY BANDS
9000XA-4 9000XB-4 9000XC-4 9000XD-4 9000XE-4
Frequency Band (GHz) 18.2 - 19.2 19.2 - 20.2 20.2 - 21.2 21.2 - 22.2 17.2 - 18.2
L.O. Frequency (GHz) 17.25 18.25 19.25 20.25 16.25
IF Frequency (MHz) 950 - 1950 950 - 1950 950 - 1950 950 - 1950 950 - 1950
9000XA-4 9000XB-4 9000XC-4 9000XD-4 9000XE-4
Frequency Band (GHz) 18.2 - 19.2 19.2 - 20.2 20.2 - 21.2 21.2 - 22.2 17.2 - 18.2
L.O. Frequency (GHz) 17.25 18.25 19.25 20.25 16.25
IF Frequency (MHz) 950 - 1950 950 - 1950 950 - 1950 950 - 1950 950 - 1950
